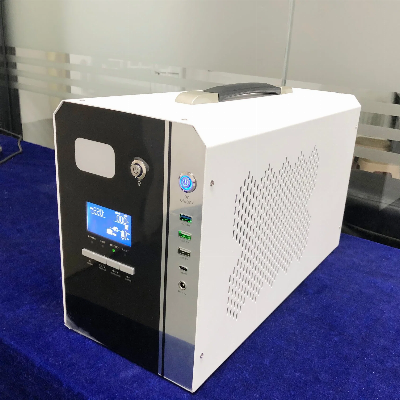

Online UPS Portable Power Supply Long Time Backup with Lithium Battery

Online Lithium Battery UPS SMART LONGER BACKUP TIME Pure Sine Wave for Computer with 110V/220V 12V 5V output PD chargerFEATURES:1.DSP digital control technology, providing stable, reliable and pure sine power supply.2.Built-in LiFeP04 battery, providing 5-10 times backup time the same volume of lead acid battery, especially suitable for narrow space and long-term power needs.3.5.Specified lithium battery charger and BMS. 4-state charging: constant current, constant voltage, floating charge, shutdown, triple circuit over-voltage protection, preset over-temperature, over-pressure switch interface. Battery pack and controlling logic is highly customizable.4.High output power factor. Using active power factor correction technology (PFC), the input power factor is above 0.99, effectively avoiding grid pollution and reducing electricity bills.5.Reliable product design. Glass fiber double-sided circuit material, with large span components, strong, corrosion-resistant, greatly improving environmental adaptability. SPECIFICATIONS:ModelGD500GD 1000GD2000GD3000Rated powerVA/W500VA/400W1kVA/800W2.0KVA/1.6KW3.0KVA/2.4KWInput/Output phaseSingle phaseInputPhase/WireSingle phase two wires(L,N)+groundVoltage range90~300VACFrequency range40Hz-70HzPower factor≥0.99Output  (Inverter mode)Phase/WireSingle phase two wires(L,N)+groundRated voltageHV:  208/220/230/240VACVoltage accuracy±1%Frequency50/60Hz±0.1%Wave formPure sine waveDistortion (THDV%)92%AC regulator+inverter mode>88%Battery inverter mode85%86%87%88%Battery/  ChargerVoltage51.2VCapacity500wH1000wH1500wH2000wHBackup time60 minutes at full loadCharging current4ACharging mode4 states: constant current, constant voltage, floating charge and shutdown , over-voltage protection, preset over-temperature monitoring switch interfaceStructureCuboid shapeVertical case with handleMaterialSGCC steel with colored baking finishDimensions180*260*410mm235*320*410mmInterfaceLCD displayInput/output voltage, frequency, load percentage, working mode, statusCommunicationRS232,Network monitoring card, remote monitoring through PC or mobile phone, ModBusEnvironmentTemperature-10~50oCHumidity0-98%(No condensing)Noise
