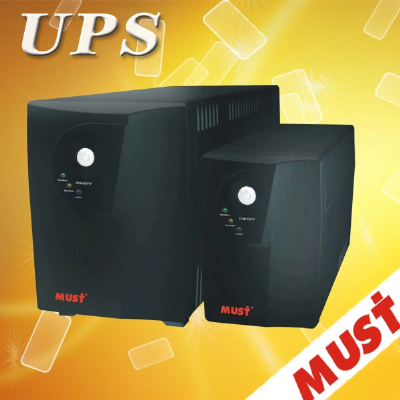

Offline UPS 600/650VA/100VA (EA1000 Series)

Replaceable Battery Design. Intelligent Battery Management. Short Circuit and Overload Protection. Surge protected outlets available for convenience. Microprocessor Controlled guarantees high reliability. Advanced PWM technology for inverter output. AVR function, inner installed examination circuit for too low or too high voltage, can connect with the power generator. Auto Restart while AC Recovery for Best power 500VA/600VA/650VA This model will automatically switch to battery mode and power the load via battery until battery low. MODELEA1000-500EA1000-650EA1000-800EA1000-1000CAPACITY500 VA/ 300 W 650 VA/ 390 W800 VA/ 480 W1000 VA/ 600 W INPUTVoltage Nominal Voltage   110/120 VAC or 220/230/240 VAC Acceptable Voltage Range90-145 VAC/150-290 VAC Frequency Range50 Hz/60HZOUTPUTAC Voltage Regulation (Batt. Mode) ±10%Frequency Range (Batt. Mode) 50 Hz or 60 HzTransfer Time (Typical)2-6 ms Waveform (Batt. Mode) Modified SinewaveBATTERYBattery Type & Numbers12 V 7 Ah x 112 V 7 Ah x 112 V 9 Ah x 112 V 7.2 Ah x 2Back up Time(at a PC load8-10 minuters8-10 minuters15 minuters15 minutersTypical Recharge Time10 hours to 90% after complete discharge INDICATORSAC Mode Green LED lightingBattery ModeGreen LED flashing every 4 secondsLow Battery at Battery ModeGreen LED flashing every secondFaultRed LED lightingBattery Fault at AC modesGreen LED flashing three times every 2 seconds Battery Week at AC modesRed LED flashing every 2 seconds for 30 secondsOverloadRed LED flashing every twice every secondALARM Battery ModeSounding every 4 secondsLow BatterySounding every secondFault Continuously sounding PHYSICAL Dimension, D X W X H (mm) 295*95*140Net Weight (kgs)5.56.26.810.5ENVIRONMENT Humidity 0 to 90% Relative Humidity(Non-condensing)Operating Temperature0°Cto 40°C  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
