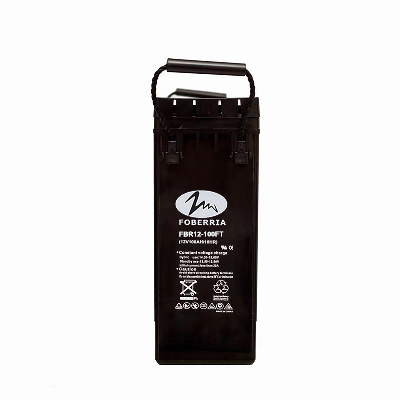

12V 65ah /12V180ah Lead Acid Battery UPS Data Center Front Terminal Battery

FT SeriesFT (Front Terminal) Series is specially designed for telecom use with 12 years design life in float service. By adopting a new AGM separator and centralised venting system, the battery can be installed in any position while maintaining high reliability. The dimensions of the FT series is designed for 19" and 23" cabinet installation.>Main Features1. 100% pre-dilivery inspection to ensure stable quality and reliable performance. 2.  Pb-Ca alloy battery plate grid, low water loss and low self-discharge rate.3.  Complete sealed, maintenance free, low self-discharge rate. 4.  Lowinternal resistance, good high rate discharge performance.5.  Excellent high &low working temperature performance (-40ºC to 60ºC).6.  High charge retention, long cycle service life.7.  Design float service life: 3-5 years.>SpecificationBattery Model No.FBR12-65FTNominal Voltage12VCapacity(25ºC)20HR(10.8V)65Ah10HR(10.5V)57.5Ah1HR(9.6V)39AhDimensionLength291±2m (11.46inch)Width106±2mm (4.317inch)Height251±2mm ( 9.88 inch)Total height261±2mm ( 10.28 inch)Approx. Weight21kg (46.29Ibs )  ±4%Terminal typeF14Internal resistanceApprox 11mΩ(Fully charged,25ºC)Capacity affected by temperature(20HR)40ºC102%25ºC100%0ºC85%-15ºC65%Self-discharge((25ºC)3monthRemaining Capacity:91%6monthRemaining Capacity:82%12monthRemaining Capacity:65%Nominal operating temperature25ºC±3ºC(77ºF±5ºF)Operating temperature rangeDischarge-15ºC-50ºC(5ºF-122ºF)Charge-10ºC-50ºC(14ºF-122ºF)Storage-20ºC-50ºC(-4ºF-122ºF)Float charging voltage(25ºC)13.5 to 13.8V Temperature compensation:-18mV/ºCCyclic charging voltage(25ºC)14.5 to 15V Temperature compensation:-30mV/ºCMax charging current19.5AMax discharging current650A(5sec.)Designed floating life(20ºC)12yearshot-sale productQ1: How to choose the right battery?A1: Tell us your demand, then our sales will recommend a suitable battery for you.  Q2. Do you have any MOQ limit?A2: Yes, we have MOQ for mass production, it depends on the different model numbers. 50-500pcs sample order is available. for sample checking is available. Q3. Is it OK to print my logo on the product?A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q4: How to solve the technical problem?A4: 24 hours after-service consultancy just for you and to make your problem to solve easily. Q5:. What certificate your company have?A5: ISO 9001, ISO 14001, OHSAS 18001, CE,, IEC 61427 test report, Patent for gel technology and other Chinese honor. Q6.What is your warranty time for VRLA battery ?A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements. Q7. Why battery has different capacity at different hour rate?A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves. Q9. How to proceed with an order?A9. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.Q10: How about the delivery time?A10: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
