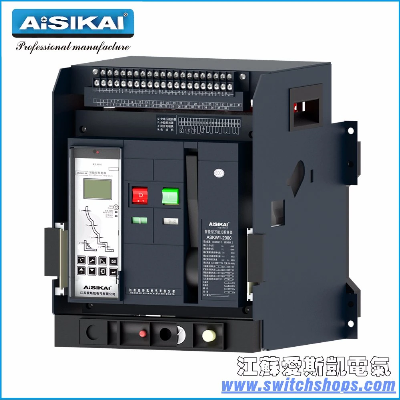

CompanyAISIKAI ELECTRICModelUNIVERSAL AIR CIRCUIT BREAKERDesign serialStandard typeFrame rating current (A)2000/2500/ 2500U /3200 /4000 /6300Number of poles3P: 3 poles ;4P: 4 poles;3P+N( 3P + connect to external neutral )line current transformerIntelligent controllerL type: LED display current, overload long/short delay protectionM: LCD type, LCD screen displaying current and voltage, adjust by buttonsH: LCD communication type, adding communication function to M typeIntelligent controllerC:Drawout type;G: Fixed typeInstallation methodUnder voltage tripper, vertical inlet and outlet busbars, mechanical interlocking,door interlocking,breaking position key lock, external current transformer of neutral line N, DC power module, phase partitionRated operational current(A)630,800,1000,1250,1600,2000(2000A frame)2000,2500(2500A,2500U frame)2000,2500,2900,3200(3200A frame)3200,3600,4000( Capacity-expanded type 4000 frame)4000,5000 6300 (6300A frame)3200,3600,4000(Standard type 4000 frame)Frequency50Hz/60HzTECHNICAL PARAMETER AND PERFORMANCEModelFrame rating currentInm ARated current In ARated impulse withstand voltageUimp kVRated Ue VRated limit short-circuitbreaking capacityIcu kA o-coRated service short-circuit breaking capacityIcs kA o-co-coRated short-time withstandcurrent Icw KA(1s)delay 0.4s o-coPower loss (In) W400V660/690V400V660/690V400V660/690VFixedDrawoutASKW1-2000200063012AC 50Hz/60Hz 400V690V85656565656540808006013010009020512509020516001403102000170310ASKW1-2500250025001007080708070260510ASKW1-2500U250025001007080708070170400ASKW1-3200320020001007080708070170400250026051029003206503200420760ASKW1-400040003200100708070807043078036004407904000450800ASKW1-630063004000120851008510085122550001250630016251.Arc distance is zero.2.In this form, the breaking capacities of upper inlet and lower inlet are same.Since established in 2007, AISIKAI has been committed to the manufacture, research, development and marketing of the high-quality high and low voltage electric switches. Our product lines cover level 1,2,3 power distribution fields. We are awarded as the National High Tech Enterprise, Double-Soft Certified Enterprise (i.e., software product certified and software enterprise certified), Little Giant Science and Technology Enterprise of Jiangsu Province, and Contract-keeping and Trustworthy Enterprise. We have invention patents, utility model patents and appearance patents. All of AISIKAI products have China Compulsory Certification (CCC) and China Quality Certification (CQC). From 2014, we have been recognized as Yangzhou City Engineering Technology Center and National Adopting International Standard Enterprise.AISIKAI products have CE certification and IEC CB certification. We have passed the ISO9001 Quality Management System and ISO14001 Environment Management System, ISO45001 Occupational Health Management System, and SGS Global Qualified Supplier Authentication. ASKW1 &ASKW2 series frame type universal circuit breaker is the first product of AISIKAI in the low voltage distribution,from 200A to 6300 A. Self-developed multi-functional intelligent liquid crystal controller.the Chinese menu in Windows structure makes the man-machine interface very friendly and easy to use. Over the years, we have been focusing on the design, R&D and professional manufacturing of low-voltage electrical products, with customer satisfaction and expectations as the guide. Continuously improve product performance on the premise of safety and reliability. Advanced automated assembly line ensures timely delivery of products to customers. Strict quality standards ensure that every product is 100% qualified. Dimensions DiagramInma mmb mmc mm2000-3P/4P3061733462500(Economical)-3P/4P3061733462500(Residential power distribution type)-3P/4P366202.54053200-3P/4P366202.54054000-3P366202.54054000-4P3061733466300-5000A/3P/4P366202.54056300-6300A/3P/4P366202.5405 A) How could I get a sample? Before we received the first order, please afford the sample cost and express fee. AISIKAI will return the sample cost back to you within your first order. B) Sample time? Existing items: Within 3 days. C) Whether you could make our brand on your products? Yes. We can print your Logo on both the products and the packages if you can meet our MOQ. D) What's about MOQ? Delivery time ? 1pcs for ATS. Normally less than 1000A ATS with stock, quick support. E) How to guarantee the quality of your products? 1) Strict detection during production one by one. 2) Strict inspection on products one by one before shipment and intact product packaging ensured. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
