2p 63A-125A Short-Circuit Protection DC Mini Circuit Breaker

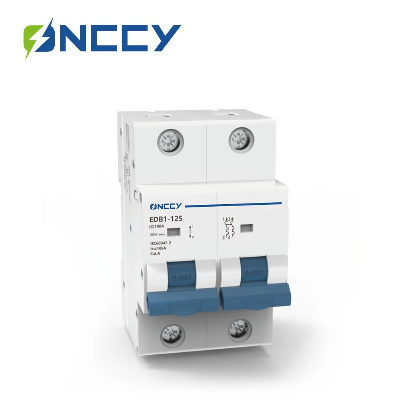

2p 63A-125A Short-Circuit Protection DC Mini Circuit BreakerProduct ProfileEDB1-125 DC miniature circuit breaker (hereinafter referred to as circuit breaker) is suitable for lines with rated current of 125A and below DC rated voltage of 200V .lt is used for overloading and short-circuit protection of facilities and electrical equipment of DC power distribution system, and can be widely used in electric power, post and telecommunications, communication, industrial and mining enterprises and other industries. This product meets the requirements of IEC60947-2.AdvantagesProtection functions: overload, short circuitRated short circuit breaking capacity icu up to 10kANon-polarity, easy wiringRated current in up to 125ARated voltage ue up to 1000VDesigned for PV, energy storage and other dc applicationsTechnical DataElectrical FeaturesRated Current In80,100,125APoles1P,2PRated voltage Ue1P(100V), 2P(200V),Rated breaking capacity10.000ARated impulse withstands voltage (1.5/50) Uimp4,000VDielectric test voltage at ind. Freq. for 1 min2kVPollution degree2Thermo-magnetic release characteristic8~12Mechanical FeaturesElectrical life4,000 CyclesMechanical life10,000 CyclesContact position indicatorYesProtection degreeIP20Reference temperature for setting of thermal elements30ºCAmbient temperature (with daily average≤35ºC)-5ºC~+40ºCStorage temperature-25ºC~+70ºCInstallation Terminal connection type Cable/Pin-type busbar/U-type busbar Terminal size top/bottom for cable 50mm² 18-2AWG Terminal size top/bottom for busbar 50mm² 18-2AWG Tightening torque 3.5Nm 30In-Ibs Mounting On DIN rail EN60715(35mm) by means of fast clip device ConnectionPower supply in both directions   FAQQ: Are you trading company or manufacturer ?A: We are manufacturer. We have 30,000 square meters of self-owned plant.Q: Do you have any certificates?A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications.Q: How do we make a quick response to customer , 5 inquiry ?A: Our professional team will reply you online or by email,Skype, whatsApp and so on.Q: Do you have any exporting experience?Which countries did you export to before?A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc.Q:Can you supply samples for checking ?A: Yes, we can supply samples, pls contact for detailed required.Q:How long is your delivery time?A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order.Q: What is the standard of package of your goods?A: Export standard package or special package according to customer requirement.Q:How about inspection?A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company?A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
