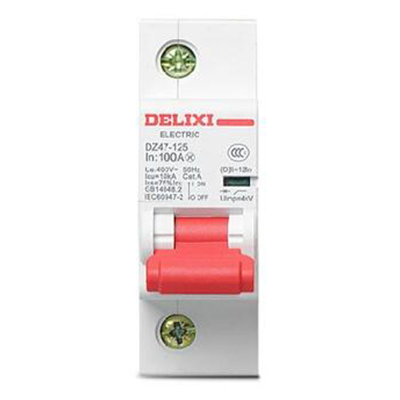

Delixi Dz47s Miniature Circuit Breaker 1p 2p 3p 4p

The details of High quality DELIXI DZ47 3poles c63 miniature circuit breaker / mcb1.Safety Leakage Current Switch : Breaker provide the function of isolation switching, overload and short circuitHigh short-circuit capacity, Contact position indicationBreaker provide the indirect protection of the operator's body against the dangerous effects of electric currentBreaker provide the protection of the fire caused by the electrical circuit fault.General Model, widely use, used in Household ,building factory,etc.Special ABS plastic high in fire-resistance and strength, green earth meterialMode of connection: Outer lead wire connecting terminalEasy mounting onto 35mm DIN rail2.Application:Protection for sub-main circuitsLight and powerMotor starting applicationsElectrical office equipmentIndustrial plantsElectrical hand toolsSocket outlets3.Main Specification:Table1:Poles1P, 1P+N, 2P, 3P, 3P+N, 4PRated Current In1-63ARated Voltage Ue230V/400VInsulation Voltage250/500VBreaking Capacity Ui6KAElectrical Durability10000 timesMechanical Durability15000 timesProtectionIP20(Direct Installation)Ambient Temperature-20°C ~ +60°CConnectionUp to 25mm2 cablesInstallationScrewM4Limiting Connection25Limiting Torque(Nm)3Terminal Connection Height19mmAccessoriesContact Accessory: OFShunt -trip Release: MX+OFWeight1P 0.1KG2P 0.2KG3P 0.3G4P 0.4GOur certificate: /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
