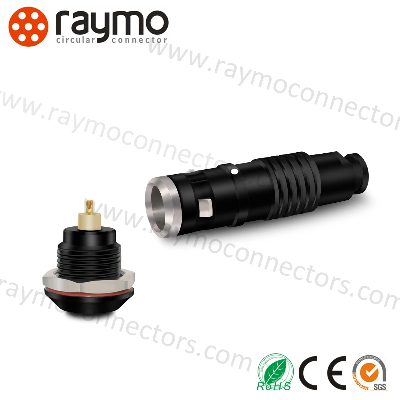

Push Pull Watertight Sealed Female Connector Compatible 1K Series 4 Pins

Parts No. :RM-FGG-1KC-P04-JS52ZDescription:Raymo 1K series sraight plug, 4 pin,outer shell in chrome -plated brass,male solder contacts,D type collet for 5.0mm diameter cable with bend reliefSeries K Metal Connector with Multiple pins for your selection:  Seriesshell sizeContacts No. with solder & PCB typeRM-K IP680K2345679       1K234567810121416   2K2345678101216181926303K34781012142130     K series connectors main features:- security of the Push-Pull latching system- watertight connection (IP 68)- multipole types 2 to 30 contacts- solder, crimp or print (straight or elbow) contacts- keying system («G» key standard)- multiple key options to avoid cross mating for connector alignment of similar connectors- 360° screening for full EMC shielding- high packing density for space savings- rugged housing for extreme working conditions.Industry Application:It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.Product Photo Details:Company Show:RAYMO focus on manufacturing & exporting various metal & plastic circular push pull  connectors, cable assembly. All products can be 100% compatible with original LEMOS • FISCHERS • ODUS • HIROSES • BINDERS and Military 38999 Packing & Shipping1~10pcs : 3~5 working days11~100pcs: 5~7 working days101~500pcs: 7~10 working days501~1000pcs: 7~12 working daysCertificate: ISO9001, CE, ROHS, SGSFAQ1. Are your company a professional manufacturer?Raymo: Yes, we specialized in producing circular push pull self-latching connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on micraymo.en.made-in-china.com more than 5 years.2. What is the MOQ?Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs. 3. Free sample :RAYMO:  Available. Any needs, please contact us.4. What about the delivery time?Raymo: sample for 3-5 working days, mass production for 5-7 working days.5.What is your payment terms?Raymo: 100% T/T  deposit when customer place order.6. Does your product have any warranty?Raymo:  Yes, all of our connectors can work normally after 5000 cycles mating; our factoryhas instruments to tested them beforeshipping.Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
