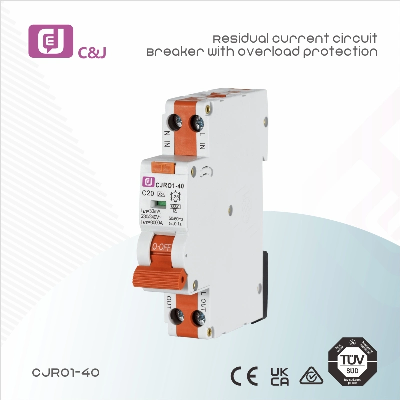

18mm Single Module MCB RCBO Miniature Circuit Breaker

Product Description18mm Single Module RCBO 6KA 1P+N B&C Curve CJR01-40(NEW)CJR01-40 Residual Current circuit breaker with overload protection (RCBO) ensure electrical safety in homes and similar situations, such as offices and other buildings as well as for industrial applications by protecting electrical installations against leakage Current reach to 30mA and against overloads and short circuits. Once a fault is detected, the RCBO automatically switches off the electrical circuit to prevent risk to the people and prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, RCBO are equipped with AC,A type. The AC type is a common type use for homes, A type with pulse DC protection, normally the rated current is 6,8,10,13,16,20,25,32,40A,leakage current protection is 10mA,30mA,100mA,300mA and rated voltage is 240(230)~VAC. frequency is 50/60Hz. according to IEC61009/EN61009 standards.Main Function Feature1.Neoteric in structure, light in weight, reliable and excellent in performance.2.High breaking capacity, can trip quickly3.High fire-resistant and shockproof plastics of its case and itemsProduct Parameters StandardUnitIEC/EN IEC/EN/AS/NZS 61009-161009-1ESV Compliant61009-1ElectricalfeaturesType(wave form of the earth leakage sensed) Electro-magnetic type, electronic typeRated current InAA,ACPolesP1P+NRated voltageV240V(230V)~Rated Current 6A,8A,10A,13A,16A,20A,25A,32A,40AModule size 18mmCurve type B&C CurveRated sensitivity I△nA0.01,0.03,0.1,0.3,0.5Insulation voltage UiV500Rated residual making and breaking capacity I△mA630Short-circuit current I△cA6000SCPD fuseA6000Rated frequencyHz50/60Pollution degree 2MechanicalfeaturesElectrical lifet4000Mechanical lifet10000Breaking capacityA6000AProtection degree IP20Ambient temperature(with daily average ≤35ºC)ºC-25~+40ºCStorage temperatureºC-25~+70ºClnstallationTerminal connection type Cable/Pin-type busbar/U type busbarTerminal size top / bottom for cablemm²16AWG18-3Terminal size top / bottom for busbarmm²16AWG18-3Tightening torqueN*m1.2In-Ibs22Connection From topMounting On DIN rail 35mm by means of fast clip device  Detailed Information Our AdvantagesCEJIA has over 20 years of experience in this industry and has built a reputation for providing quality products and services at competitive prices.     We are proud to be one of the most reliable electrical equipment suppliers in China with more.   We attach great importance to product quality control from raw materials procurement to finished product packaging.  We provide our customers with solutions that meet their needs on a local level, while also giving them access to the latest technology and services available.We are able to produce large volumes of electrical parts and equipment at very competitive prices in our state-of-the-art manufacturing facility located in China.FAQQ1:Are you a trading company or manufacturer?A.We are professional manufacturer for low-voltage circuit breaker series products,Integrates research and development, manufacturing, processing and trade departments together. also we supply of different electrical and electronic items Q2: why will you choice us :A.more than 20years of professional teams will give you good quality products ,good service ,and reasonable price Q3: Is the MOQ fixed? A.The MOQ is flexible and we accept small order as trial order. ....Dear Customers,If you have any question , please feel free to contact  with me , I will send you our catalog for your reference.About UsMore products      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
