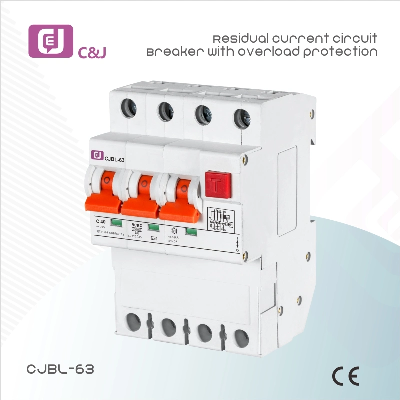

Cjbl-63 Electronic Residual Current Circuit Breaker with Overload Protection

Product DescriptionResidual Current Circuit Breaker With overload protection CJBL-63CJ:Company codeB:MCBL/F:L-Electronic type/F-Electromagnetic type40/63:6~63A(6KA)/6~40A(10KA)/Casing frame class rated correntCJBL-40 series miniature circuit breaker is a new type product researched and developed by our company depend ently on the basis of absorbing overseas advanced technologies. It complies with the standards GB16917.1 and IEC61009-1.The products are featured with small volume, high breaking apacity of 10KA,neutral breaking function, etc, are widely applied to low-voltage electric systems of AC50 HZ, rated voltage of 230V and rated current not exceed 63A,protect the human body against electric hock,and protect the building and similar purposed circuit equipment against over-current or short circuit.The products also can be used to prevent fire danger caused by earthing fault current due to the damage of insulation of circuits and electrical equipment.The product also has wide current range, up to 63A is available, instead of two pole and medley pole products,saves space.Machinery parameter1.High break capacity 10kA2.Compact configuration, small size(2 standard dimensions)3.Centrtc line off capacity, more safe and reliable4.Duaf function connection terminal, Well connected5.Contacts condition indicator easy to identify contact information6.Up to 63A is available, wider current range7.Matchable with many kinds of accessories, can be equipped with overvoltage protectionNotice MattersThe circuit breaker should be wired according to the polarity marks,the positiveand negative polarities of power supply should be absolutely proper.Power incoming terminal of circuit breaker is "1" (1P) or "1,3" (2P), loadterminal is "2" (1P) or "2" (positive end of load),4 ( negative end of load)(2P), don't make wrong connnection.Order guidelinesWhen placing an order, please give clear indications on model, rated current value, tripping type, pole number and quantity of circuit breaker e.g: DAB7-63/DC miniature direct current circuit breaker,rated current is 63A tripping type is C, two-pole, C type 40A,100 pieces, then it can be expressed as:CJBL-63/DC /2-C40100pcs.Product ParametersStandardIEC61009/EN61009Poles of number1P+N/2P3P+N/4P2P3P+N/4PRated current ln A6-63A6-32A6-63A40-63ARated voltage(Ue)230V/400V,50HZRated current In6-63ARelease featuresB,C,D features curvesShell protection gradelP40( Afier instaiiation)Ratedbreak capacity lcn10kA(CJBL-40),6kA(CJBL-63)Rated residual action current10mA 30mA,50mA 100mA, 300mAMaximum available fuse100AgL( >10KA)Climatic conditions resistanceAccording to IEC1008 in L standardTotal life180000 times of operationLifespanNo less than 6000 times on-offactionNo less than 12000 times on-off actionRelease typeElectronic typeFunctionsProtection against short circuit ,leakage ,overload, over voltage,isolationType of residual currentAC and ARated frequency f Hz50-60HzRated working voltage Ue VAC230/400Rated residual current I△n mA10,30,100,300Insulation voltage Ui500VRated impulse withstand voltage Uimp6KVInstantaneous tripping typeB/C/DRated short circuit lcn(kA)CJBL-40 10KA,CJBL-63 6KAMechanical12000Electrical6000Protection degreeIP40Wire mm²1~25Working temperature (with daily average≤35ºC)-5~+40ºCResistance to humidity and heatClass 2Altitude above sea≤2000Relative humidity+20ºC,≤90%;+40ºC,≤50%Pollution degree2Installation environmentAvoid obvious shock and vibrationInstallation classClass II, Class IIIAuxiliary contact√Alarm contact√ALT+AUX√Shunt release√Under voltage release-Over voltage release√  Our AdvantagesCEJIA has over 20 years of experience in this industry and has built a reputation for providing quality products and services at competitive prices. We are proud to be one of the most reliable electrical equipment suppliers in China with more. We attach great importance to product quality control from raw materials procurement to finished product packaging. We provide our customers with solutions that meet their needs on a local level, while also giving them access to the latest technology and services available.We are able to produce large volumes of electrical parts and equipment at very competitive prices in our state-of-the-art manufacturing facility located in China.FAQQ1:Are you a trading company or manufacturer?A.We are professional manufacturer for low-voltage circuit breaker series products,Integrates research and development, manufacturing, processing and trade departments together. also we supply of different electrical and electronic itemsQ2: why will you choice us :A.more than 20years of professional teams will give you good quality products ,good service ,and reasonable priceQ3: Is the MOQ fixed? A.The MOQ is flexible and we accept small order as trial order.....Dear Customers,If you have any question , please feel free to contact with me , I will send you our catalog for your reference. About UsMore products      /* January 22, 2024 19:08:37 */!function(){function s(e,r){v
