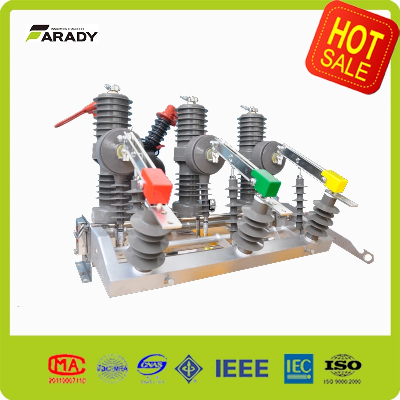

Zw32 Pole Mounted Power Circuit Breaker Electric Automatic Circuit Breaker

OverviewZW32-12/T630-25 Type Outdoor high voltage vacuum circuit breaker is a outdoor distribution equipment with AC 50HZ,rated voltage 12KV and three-phase ac. It is mainly used for open circuit power distribution network and close the load current, overload current, short circuit current in power system.It is suitable for the transformer substation and factory power distribution system for protection and control use. Especially suitable for urban power grid and rural power grids.Service Condition1. Ambient Temperature: -40ºC~+65ºC,daily temperature≤25ºC;2. Altitude: ≤2000m3. Wind speed: ≤35m/s4. Earthquake intensity: ≤85. Anti-fouling property: IV level6. Installation site: Not putting inflammable, explosive, chemical corrosion.Technical ParametersNO.ItemUnit Numeric1Nominal  VoltageKV122Rated  FrequencyHZ503Rated  CurrentA630/12504Rated Short-circuit Breaking CurrentKA205Rated  Stability rated  currentKA506RMS/Rated the rmal stabilizationKA/S20/47Mechanism lifeTimes100008Rated short-circuit closing breaking NumberTimes309Rated operating sequence O-0.3s-CO-180s-CO10Rated breaking current numberTmes1000011Rated short-circuit close-open currentKA50121min Power-frequency withstandDryKV42/48WetKV3413Lighting impulse withstand voltage(Peak Value)KV75/8514Secondary circuit 1min Power-frequency withstandKV2 Packaging & ShippingAbout UsFounded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Powertech enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.We are National Hi-tech enterprise, National Spark plan Program,State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.Farady is located in Liushi of Yueqing, Zhejiang,China,main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid.With ISO9001/14001/18001, we are strike for create value for our partner and customer.There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from china, and contributes its share to the transformation from the Made in China into the Invented in China.WE COMMITTED TO PROVIDE A BETTER POWER.  Our Advantages1. The conventional reactive power compensation method has a large compensation capacity and the adjustment is not flexible, it will lead to the compensation is not suitable , often appear over and not enough.2. The capacitor switching can cause over-voltage and inrush current, and it will seriously affect and reduce the service life of the switch. 3. When the capacitor is switched on, as the capacitor will charged and discharged, when it need to switch on again, which affects the speed of the switching..       According to the above problems, our company developed the FLYK type reactive power compensation device, has the following advantages:(1). Energy conservation: Farady voltage regulating type capacitors will change the output reactive power by regulating voltage on capacitors, so that the reactive power can be adjusted smoothly. Comparing with other method, it can ensure the capacitors in best condition, the energy saving effect is much better (2). Low cost:If the old power transformer substation need to reform, only need to add a voltage regulator between the circuit breaker and capacitors, the original circuit breakers, reactors, capacitors can be reuse, greatly reduce the cost of transformation(3). Maintance Free:When traditional circuit breaker and contactor switching, switching devices and capacitors often damaged because of the above problems, result in high maintenance costs, using Farady devices, automatic control reactive power output, there is no potential risks of other equipments, greatly reducing maintenance and staff costs in power transformer substation (4) Quality AssurancesWe have a strictly quality control process from the raw material to finished products. Advanced testing lab to make sure products quality and improve our creative ability. Quality and Safety is the soul of our products.(5) Excellent Services  Many years of manufacturing experience and rich export business help us to establish a well-trained sales service team for all customers.(6) Fast DeliveriesStrong manufacture capacity to satisfy urgent leading time. It is around 15-25 working days after we receive the payment. It varies according to the different products and quantity.(7) OEM ODM and MOQStrong R&D te
