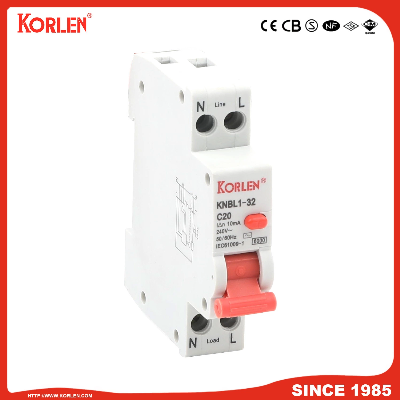

Electrical Molded Case Circuit Breakers Knbl1-32

KNBL1-32 series leakage breaker is suitable for the leakage protection of the line of AC 50/60Hz, rated voltage single phase 240V, rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will automatically cut off the power within 0.1s to protect human safety and prevent the accident due to the current leakage. KNBL1-32 series leakage breaker can protect against overload and short-circuit. It can be used to protect the line from being overloaded and short-circuited as wellas infrequent changeover of the line in normal situation. It complies with standard of IEC/EN61009-1 and GB16917.1. Frame class32ARated working voltage240VRated frequency50/60HzRated working current6,10,16,20,25,32ARated limiting short-circuit current6000ARelease typeCPole number1P+NMechanical life4000Electric life20000Sequence NO.ReleaseTestcurrent I/InStart stateTrippingtimeExpectedrestlt1C1.13InCold statet≤1hNot tripping2C1.45InStart right afterthe serial NO .1 testt
