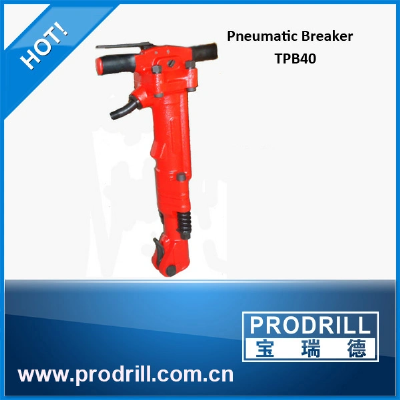

Tpb40 Tpb60 Tpb90 Pneumatic Air Paving Breaker

Decription: All parts of pneumtic air pick breaker hammer are made of alloy steel, and have great durability. Back head is fixed by four bolts, and can endure the extremely hard condition Quick reblading-type gripper, easy changing chisel, Hex. Shank It is used to break or excavate the asphalt ModelTPB40TPB60TPB90Piston diameter44mm57.15mm66.67mmPiston stroke100mm146mm152mmImpact frequency900 minute/Time1250 minute/Time1400 minute/TimeNet weight18kg/39.6lbs30kg/60lbs42kg/92.4lbsTotal length660mm645mm723mmAir consumption1.6m3/minute2.0m3/minute2.2m3/minuteHose size19mm(3/4inch)19mm(3/4inch)19mm(3/4inch)Shank specifications1×4-1/4 25X1081×4-1/4 25X1081×4-1/4 25X108Inlet size3/4pt3/4pt3/4ptAir pressure0.63Mpa0.63Mpa0.63MpaOur main products are as below: Construction & Mining & Rock Drill Tools:  1). DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System; Hydraulic Breaker Hammer (4 ~ 20ton) 2). Top Hammer (drill hole dia.: 33 ~ 152mm): a) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60) b) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm), High Range Grout, (Expansive Mortar Grade A) Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm):    1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder/Grinding machine, Grinding Cup, Grinding Pin; 3) Pneumatic Rock Drill: Handheld (Y10, Y18, Y20, Y24, TY24C), Airleg (YT28, YT29A) and Gasoline (YN27C, YN27J); 4) Expansive Mortar (dia. 30 ~ 35mm), Expansive Grout, Soundless Cracking Agent, Rock Breaking Chemical;      Hydraulic Rock Splitter PD40-250, Aluminum or Steel Cylinder; 5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
