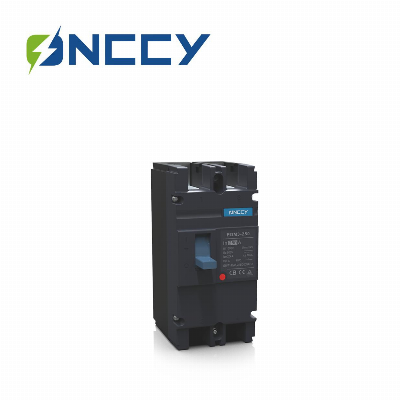

Moulded Case Circuit MCCB Air Electrical Electric Breaker

Moulded Case Circuit MCCB Air Electrical Electric BreakerReliable protection at high ambient temperatureLoadable: string protection up to 250A, size 125A, 140A, 160A, 180A;  200A, 225A, 250A;Tested: ultimate short circuit breaking capacity Icu of 25kA according to IEC 60947-2, DC1000V 2P specialized in Molded Case Circuit Breaker dc circuit breakerFast: Reclosable for minimum standstill timesSafe: reliable disconnector properties, switching under loadApproval: provide on requestCompliance with global standards and certifications.Minimum space requirement thanks to the compact design.Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line.  EDM3 Series DC Moulded Case Circuit BreakerModelEDM3-125EDM3-250No.of poles2P2PMaximum frame current125A250AElectrical parametersRated operating voltageUe500V500VRated current In(A)60/80/100/125125/160/200/250Rated insulation voltageUi500V DCRated insulation withstand voltageUimp8KV1 min power frequency withstand voltage3.8KV3.8KVUltimate breaking capacityIcu20KA20KAOperating breaking capacityIcs10KA10KAProtectionTripping typeThermal-magnetictypeControl and indicationOperation modemanual operationDirect operation of switch handleOptionalManual operation mechanismOptionalElectrical operation(MOD) OptionalShunt releaseOptionalAuxiliary releaseOptionalTerminal protective coverHaveInterphase plateHaveService lifeMechanical life1000010000Electrical life20002000Protection classSide IP40, Connecting port IP20Installation and operational environmentStandardICE60947-2/GB14048.2Ambient temperature-40ºC~+85ºC  FAQQ: Are you trading company or manufacturer ?A: We are manufacturer. We have 30,000 square meters of self-owned plant.Q: Do you have any certificates?A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications.Q: How do we make a quick response to customer , 5 inquiry ?A: Our professional team will reply you online or by email,Skype, whatsApp and so on.Q: Do you have any exporting experience?Which countries did you export to before?A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc.Q:Can you supply samples for checking ?A: Yes, we can supply samples, pls contact for detailed required.Q:How long is your delivery time?A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order.Q: What is the standard of package of your goods?A: Export standard package or special package according to customer requirement.Q:How about inspection?A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company?A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
