Professional Factory for Solar PV DC Combiner Box

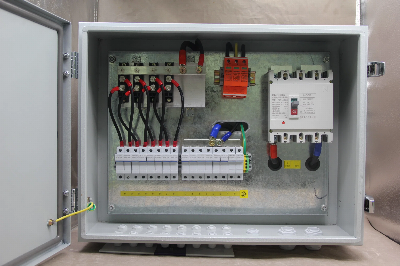

China manufacturer pv array combiner boxProduct Description   For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability,it generally need to add DC busbar device between the PV module and the inverter. Our company's PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products. Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box.It's convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker. The PV array lightning protection box has the following characteristics:(1) meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;(2) access  PV array, each with 15A, 1000Vdc fuse (replaceable other grades); (3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;(4) Positive, negative string into the fuse; (5) Use quadruple PV dedicated circuit breaker with positive and negative in series;  Part numberdescription1Negative convergence copper busbar2 detection unit3DC MCB4Dc positive Convergence output5Dc negative Convergence output6RS485 communication terminal (output point)7Ground output point8Lightning protection device9Positive convergence copper10DC positive fuse holder and fuse (each input in series with a fuse) up to 16 way11DC negative fuse holder and fuse (each input in series with a fuse) up to 16 road                           Figure 1: internal structure of the combiner box 3.SizeSpecificationWidth(A)mmheight(B)mmdepth(C)mm18 way64555020514,16 way61055020510,12 way5305502056,8 way4605502052,4 way390550205  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
