High Quality Prepaid Meter Reclosing Circuit Breaker Automatic Circuit Recloser

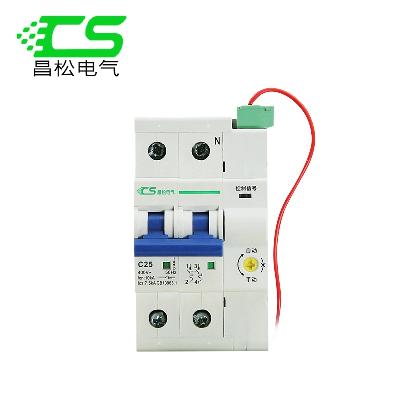

Auotomatic reclosing circuit breaker (Pre-paid meter reclosing circuit breaker) is used in AC50 / 60HZ two poles 230V, four poles 400V,rated current up to 100A,to control the remote operation opening/closing of the circuit,with overload and short circuit protection. BD1-100S is dedicated with electric meter box, have the electric meter control and feedback signal function.Once the  the user arrears,electricity meter will send a trip signal to the BD1-100S,then it will automatically disconnect and closing,after the user pay the electricity bill,electricity meter will send an switch on signal to the BD1-100S,it will automatically reclose.Meanwhile, the grid operator can remote control the on/off of the BD1-100S  by electricity meter.BD1-100S  is widely used in the prepaid meter box with IC card, can also be used for a remote Internet Internet signal control, to realize the automatic remote shunt tripping and reclosing function.Main Function:1.Overload and short ciruit protection.2.Signal control and feedback function.3.Manual and automatic reclosing overlapping double conversion function4.With RS485 input ,can connect with the existing system device to realize remote monitoring.                                                                                                                                                                                                                 FeaturePole No.: 2P,4PRated Voltage:230/400VRated Current:6,10,16,32,40,50,63,80,100ATripping curve: B, C, DRated frequency: 50/60HZCircuit breaker width:54mm(2P),90mm(4P)Installation: On symmetrical DIN rail 35mm /Panel Mounting Packaging3pcs/inner box, 75pcs/carton(1P)                                    SampleSample fee: FREE for 1 pcs (freight paid by buyers)Sample delivery:3 days after the receipt of the freightPaymentT/T via Credit card,PaypalDelivery Time10-30days according to the  buying quantityShipping PortNingbo Port/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
