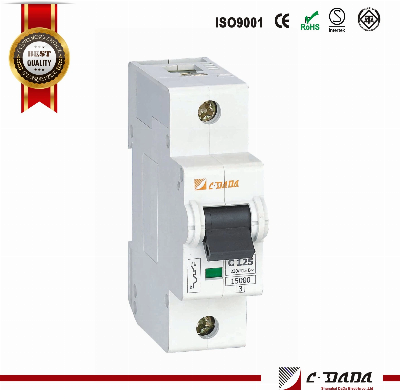

DAB7-125 15ka 1p IEC60947-2 Miniature Circuit Breaker MCB

DAB7-125 27mm Miniature Circuit Breaker(MCB) 10KA/15KAIntroductionFor industrial and commercial purposesElectrical Distribution needs are continuously evolving in residential, commercial and industrial sectors. Improved operational safety, continuity of service, greater convenience and operating cost have assumed a tremendous significance. Miniature Circuit Breakers have been designed to continuously adopt to these changing needs.AdvantagesTrip Free mechanismHigh Breaker capacity 15KAPositive contact indicationThermal and magnetic trip functionCurrent limiting design for short circuit fault protectionCE marking,Semko productSpecification:IEC 60947-2Design Features Large Cable Terminals Suitable for copper and aluminum cables, these terminals are compatible with cables upto 35mm2 cross section area  Technical Features  MCB DAB7-125For protection of general power distribution (IEC/EN 60947-2)    Poles1P2P3P4PElectrical performanceFunctionsshort circuit protection,overload protection,isolationg,controlRated frequency      f ( Hz)50-60HzRated working voltage  Ue (V) AC230/400400Rated current      In (A)6,10,16,20,25,32,40,50,63,80,100,125Rated insulated voltage    Ui  (V)500Impulse withstand voltage   Uimp( kV)4Instantaneous tripping typeDAB7-125NB/C/DDAB7-125HB/C/DRated short circuit Icn(kA)       DAB7-125N10DAB7-125H15Release typeThermal magnetic typeService life(O~C)Mechanical  Actual value8500 Standard value 4000Electrical  Actual value1500 Standard value 1000Connection and installationProtectiom degreeIP20Wire       mm²1~35Working temperature-5 ~+40ºCResistance to humidity and heatClass 2Altitude above sea≤2000Relative humidity+20ºC , ≤90% ;+40ºC , ≤50%Pollution degree2Installation environmentAvoid obvious shock and vibrationInstallation classClass II , Class IIIMountingDIN35 railDimensions(mm)                                            (WxHxL)                                                                                 a275481108b90909090c75.575.575.575.5  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
