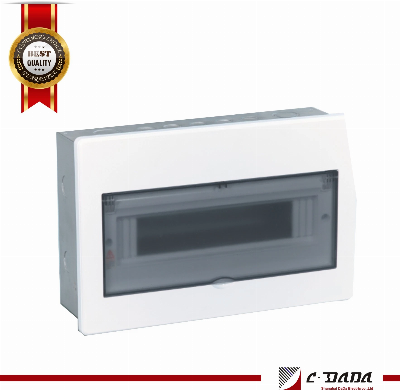

Be Series IP40 Modular Distribution Box

Modular distribution box (BE series) Introduction    The cover is double-curved and designed with a dewy,simple and elegant appearance.   Technical SpecificationProduct series: embedded mounting distribution box/surface mountingdistribution boxWays:4way, 7way, 10way, 12way, 14way, 16way, 18way, 20way, 24way(embedded mounting), 28way, 40wayProducts: 1.embedded mounting                    BEP-A 104, BEP-A 107, BEP-A 110, BEP-A 112. BEP-A 114, BEP-A 116, BEP-A 118, BEP-A 120,                    BEP-A124, BEP-A228, BEP-A240                  2.surface mounting                   BEP-M 104, BEP-M 107, BEP-M 110, BEP-M 112, BEP-M 114, BEP-M116, BEP-M 118, BEP-M 120,                   BEP-M 228, BEP-M 240Box base material: high-quality cold-rolled plate, electrostatic powder coatedsingle row embedded-mounting box dimension(width*height):(4way)143x75mm,(7-20way)192x75 mm,                                                       (24way)230x90mmCover material: high-quality ABS for cover base and white movable door, high-quality PC for transparent movable door,Cover installation: fixed with screwBox installation: 1 .embedded mounting  2. Surface mountingWay size: 18 mm (standard width)Terminal cross-section dimension: 1) 4~20way  6 x 10mm                                2)24~ 40way 6.4 x 12mmRated voltage(V):~AC400V( ±20%) 50~60HZRated current/Max. Current input:1)55A(4~20way) 6 x 10mm                              2)63A(24~40way) 6.4 x 12mmProduct standard: GB17466.1-2008,    GB17466.24-2008Ingress protection: IP40Packing informationSpecification & DescriptionPhoto CartonL*W*H(cm)(PCS/CTN)Distribution Box   BE-M104Surface mounting 505×190×36010BE-M107520×245×46510BE-M110520×300×46510BE-M112520×335×46510BE-M114520×235×3755BE-M116520×235×4155BE-M118520×235×4505BE-M120520×235×4855BE-M228445×165×4101BE-M240445×165×5201BEP(2013)-A 104Embedded mounting 505*190*36010BEP(2013)-A 107520*245*46510BEP(2013)-A 110520*300*46510BEP(2013)-A 112520*335*46510BEP(2013)-A 114520*235*3755BEP(2013)-A 116520*235*4155BEP(2013)-A 118520*235*4505BEP(2013)-A 120520*235*4855BEP(2013)-A 124600*275*5655BEP(2013)-A 228485*165*4101BEP(2013)-A 240485*165*5201BE series                           Cover                                        Box BaseSurface mounting box base is made of high quality cold-rolled plate,1.0mm thickness for one row and 1.2mm for two rows.Embedded mounting box base is made of high quality cold-rolled plate, 0.8mm for one row and 1.0mm for two rows.The surface of the plate is electrostatic powder coated and the tolerance is fully complied with the PT.A tolerance requirements in GB/t 708-2006.Product way(embedded mounting):4way,7way,10way,12way,14way,16way,18way,20way,24way,28way,40way.Product way(surface mounting):4way,7way,10way,12way,14way,16way,18way,20way,24way,28way,40way.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
