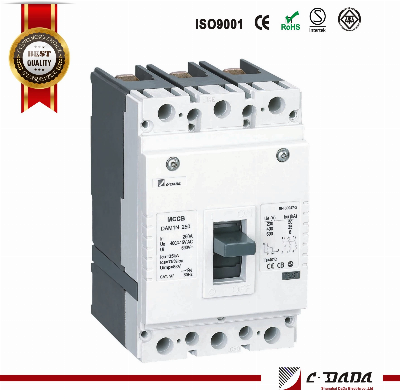

Thermal Adjustable MCCB Dam1-250 3p Moulded Case Circuit Breaker

DAM1-250 thermal adjustable type Moulded case circuit breaker(MCCB)3P,4P 400V/415V Moulded case circuit breaker high quality with ASTA,SEMKO,CE,CB,ROHS certificateIntroductionDAM1 series adjustable range of Moulded Case Circuit Breakers are designed and manufactured to world-class standards.Provide overload and short-circuit protection for all applications.The thermal elements, adjustable over a wide band,make these MCCBs ideal for any distribution application.Advantages°63A to 250A in three pole and four pole with switched execution.°Compact dimensions°Adjustable thermal setting(70-100%)In.°Push to trip button provision.°Separate main and arcing contacts°Wide range of accessories.Technical parameters  Thermal-Magnetic fixed type Circuit Breakers ModelDAM1-250Breaking Capacity CodeNSHGRated Current of Frame size- Inm                                                                    (A)250ARated Current-In(40,50 or 55ºC)                                                                      (A)63 - 80-100-125 - 160(180) -  200(225) - 250(320)ARated İnsulation Voltage -Ui(a.c.) 50-60Hz                                                    (V)750VRated operation Voltage  -Ue(a.c.) 50-60Hz                                                    (V)400/415VNumber of Pole3P /4PRated ultimate short Circuit breaking Capacity  kA  Icu AC400V/50Hz O-CO          (KA)35506585Rated service short Circuit breaking Capacity  kA  Ics AC400V/50Hz O-CO-CO     (KA)26.2537.548.7551Rated short-circuit breaking capacity Icm(peak)/cos ф AC400V/50HZ O-CO         (KA)77/0.25114/0.25143/0.2178/0.2Rated impulse withstand Voltage -Uimp                                                                            (V)8000Dielectric Propery (V)3000lonization distance                                                                                                              (mm)≤30/0EnduranceTotal Cycles8000Electrical Life1000Mechanical Life7000Over Current tripThermal release adjustableMin:0,7In -Max:1InMagnetic release adjustable (5In-10In)  -Thermal and Magnetic release fix type√Category (EN 60947-2/IEC 60947-2)Main circuitA/BAuxiliary circuitAC-15Under Voltage Release √Shunt Release√Auxiliary Contact√Alarm Contact√Auxiliary Contact and Alarm Contact√Handle Operation Mechanism√Electrical Operastion Mechanism √DIN clips-Terminal cover  √Phase seperator  √Extention Handle  - W (mm)3P1054P140L (mm)3P1704P170H (mm)3P103.54P103.5WeightFixed version 3P/4P2.7/3.541.5/5.5Plug-in version 3P/4P3.2/4.24.6/6Draw out version 3P/4P3.6/4.65/6.4  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
