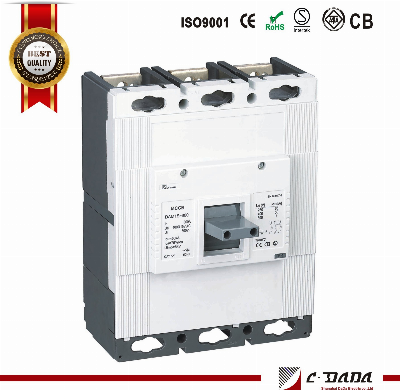

Dam1-800 3p 400-800A Asta Approved Molded Case Circuit Breaker

IntroductionThe DAM1 series circuit breakers are intended for conducting current in normal mode and switching it off at short circuits, overload, inadmissible bucking as well as operational actuation and tripping of electric circuit parts. They are designed for use in electric units having the operative voltage limited to 400V per rated current from 12,5 to 1600A. They correspond to the requirements of EN 60947-1, EN 60947-2 Thermal-Magnetic Circuit Breakers:Thermal protection function:(For protection under over load conditions) Bimetal,  which provides thermal protection, consists of combination of two metals with different extension coefficients under heat. When bimetal is heated, it bends towards the metal with less extension. In this way, a notch that assists opening of the breaker mechanism is released to disable the breaker. Bending speed of bimetal is in direct proportion with size of the current passing through the breaker. Because, increase of current means increase of heat. In this way, over current protection function of the breaker is fulfilled by bimetal at load currents higher than the rated current Magnetic protection function (For protection under short circuit conditions) Another function of the breaker is to protect the connected circuit against short circuits. Short circuit may occur as a result of contact of phases with each other or contact of phase-ground. Since a very high current shall pass through the cables in case of short circuit, system energy should be broken in a shorter time due to thermal protection. Breaker should perform instant opening to protect load it is connected to. The part fulfilling this function is a mechanical opening mechanism that operates with magnetization caused by the magnetic area formed by the short circuit current  Thermal-Magnetic fixed type Circuit Breakers ModelDAM1-800Breaking Capacity CodeNSHGRated Current of Frame size- Inm                                                                    (A)800ARated Current-In(40,50 or 55ºC)                                                                      (A)400 - 500 - 630 (700)- 800 -1000ARated İnsulation Voltage -Ui(a.c.) 50-60Hz                                                    (V)750VRated operation Voltage  -Ue(a.c.) 50-60Hz                                                    (V)400/415VNumber of Pole3P /4PRated ultimate short Circuit breaking Capacity  kA  Icu AC400V/50Hz O-CO          (KA)35507085Rated service short Circuit breaking Capacity  kA  Ics AC400V/50Hz O-CO-CO     (KA)3537.552.552.5Rated short-circuit breaking capacity Icm(peak)/cos ф AC400V/50HZ O-CO         (KA)77/0.25100/0.25154/0.2187/0.2Rated impulse withstand Voltage -Uimp                                                                            (V)8000Dielectric Propery (V)3000lonization distance                                                                                                              (mm)≤80/0EnduranceTotal Cycles5000Electrical Life1000Mechanical Life4000Over Current tripThermal and Magnetic release fix type√Category (EN 60947-2/IEC 60947-2)Main circuitA/BAuxiliary circuitAC-15Under Voltage Release √Shunt Release√Auxiliary Contact√Alarm Contact√Auxiliary Contact and Alarm Contact√Handle Operation Mechanism√Electrical Operastion Mechanism √DIN clips-Terminal cover  √Phase seperator  √Extention Handle  √ W (mm)3P2104P280L (mm)3P2684P268H (mm)3P103.54P103.5WeightFixed version 3P/4P9.6/12.5Plug-in version 3P/4P-Draw out version 3P/4P12.2/15.3  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
