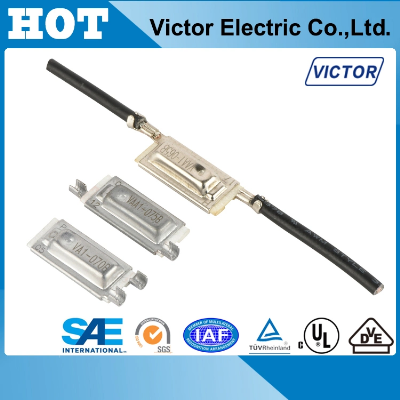

Bimetal Thermal Protector Thermostat Motor Protector

VA1(S) is a bi-metal constructed thermostat/thermal protector with low resistor circuit and gold diffused point devise inside, and sealed in a plastic case for water-proof and dust-proof. Its compact dimensions and constant temperature control design makes it exceptionally suitable for electric blanket, heating pad and household appliance. Electrical Characteristics AC120 V / 5 A DC 24 V / 5 A Temperature Range and Tolerance: UL and C-UL certification ( No.: E246870 ). Enable to bear 100, 000 life proof and 1000 hours working without break. UL130 testing approval. RoHS ( 2002/95/EC Directive ) and REACH correspondence.   VA SeriesThermostat SpecificationsVA Series is a creep action thermostat/ thermal protector with conductive bimetal construction.Also, low internal resistance and gold diffused contacts are available. Owing to its heat preservation function and miniature design the thermostat can mainly be applied to heating pads, pet pads and small household appliances.Key Freatures:Use conductive bimetal material to make sure stable currency and the low voltage/current requirementIt can be switch turn on / off gradually in order to maintain a constant & stable temperature.Preset down the temperature range before delivery , can ' t be adjustable .Terminal end can be connected with lead wire directly.Available to normally open and normally closedWiring or fuse process are available.Rating:VA1: AC120 V / 2A  ;  VA2: AC120 V / 5 ATemperature Range And Tolerance:Temperature range from 5 ºC - 200ºC is available.Standard tolerance is ± 5 ºC . However, tolerance within ± 1 ºCto ± 8 ºC is also available upon request.Compliance:UL and C-UL certification ( No. :E246870 ) .Enable to bear 100,000 life proof and 1000 hours working without break. UL130 testingapproval.RoHS ( 2002/95/EC Directive ) correspondence.Model Code Type1: VA1A1: VAA1A1L: VAA1L1S: VA1STemperature005-200: 005-200 ºCTolerance01 - 08: ±1ºC to ±8ºCYear of  CalibrationA: 2003, B: 2004 ,…, Z:2028Week of     Calibration1: 1st week of the year, 2: 2nd week of the year,… , 52nd of the year  Dimensional Outline DrawingVA1VAA1VA1(S)VAA1 (L)/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
