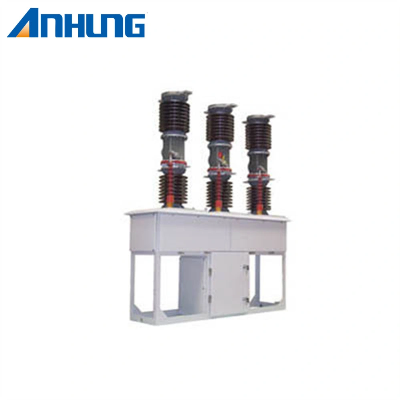

Description:Type AH7-36 outdoor high-voltage vacuum circuit breaker is a kind of outdoor high-voltage switchgear under three-phase AC 50Hz, 36kv rated voltage and below. It can be used to switch on and off the loading, overloading and short-circuit current.Features:1. Storage, making and breaking by motor, It can operating by handle.2. Breaking short-circuit current up to 25kA.3. Mini motor spring mechanism (about 30W).4. Installation method: adopt two type installation method.5. Sealing performance: adopt reliable sealing technical.6. Incoming & Outgoing method: adopt silicon bushing to make enough insulate distance.7. Safe operating: there is an equipment to protect explosion.Techincal data: No.ItemUnitData1Rated voltageKV362Rated currentA 1250,1600,20003Rated short-circuit breaking currentKA 20,25,31.54Rated insulation levelPower frequency withstand voltage DryKV95WetKV80Lightning impulse withstand voltage (peak value)KV 1855Rated operating sequence O-0.3s-CO-180sCO6Rated capacitor group breaking currentA 4007Rated short-circuit breaking currentTime208Rated peak withstand currentKA 50,63,809Rated short - time withstand currentKA 20,25,31.510Rated Short-circuit Continuing TimeS 411Machinery lifeTime1000012Permissible gross wearing thickness for dynamic/static contactsmm 3COMPANY PROFILE:AN HUANG isa modern company of professional design and manufacturer of 3.6kV to 40.5kV Medium Voltage cable accessories, electric components and whole set cabinet Subsidiaries:Anhuang Electric Power Technology Co.,Ltd Zhejiang Anhuang Imp & Exp. Co .. Ltd. We provide high quality, low cost products for utility systems worldwide Company constantly introducing new technology,newcraft, the product structure constantly improved.Our Professionalproduction testing equipment.special production technology and professional service team can satisfy the customers demand. Our professioal engineers,technicansand managers team always keep our promise:ANHUANG is not only provide cost-effective high quality products.but also provide high quality, efficient, fast service and technical support to ensure customers' require.Our company obtained international quality management system ccertification for ISO9001,ISO1401,OHSAS18001.Our company adhenring to the "safety electricity, forever brilliant " as our enterprise's humanism. Willing to work with you hand in hand to build better future/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
