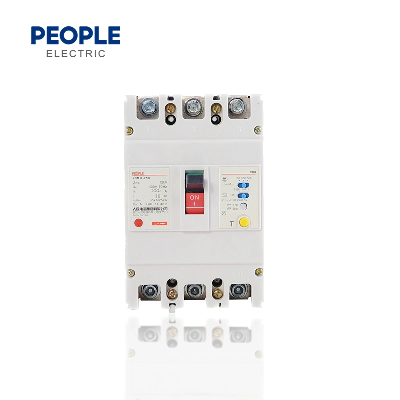

Product Description RDM1L series moulded case circuit breaker, is mainly applied to the distribution circuit of AC50/60Hz, rated working voltage is 400V, rated current up to 800A for providing protection indirectly and prevent the fire caused by the fault grounding current, and it also can be used for power distribution and circuit protection against overload and short-circuit, it also works for transferring circuit and starting motor infrequently.This product is suitable for isolating.This product is applied to standard of IEC 60947-2.Application1 Temperature: no higher than +40 °C, and no lower than -5 °C ,and the average temperature no higher than +35°C.2 Installation location no more than 2000m.3 The relative humidity: no more than 50%, when Temperature is +40°C. The product can withstand the higher humidity under lower temperature, for instance, when temperature at +20°C, the product can withstand 90% relative humidity.The condensation that happened because of temperature changes should be taken care with special measurements4 Class of pollution: 3 Class5 It should be installed at the place that have no danger of explosion, it also has no gas and conductive dust which would cause metal-corrosion and insulation-damage.6 Maximum install inclined Angle 5° , it should be installed at the place has no obvious impact and weather-influence.7 Main circuit installation type: III, Auxiliary circuit and control circuit installation type: 118 External magnetic field of Installation location should not exceed than 5 times of earth magnetic field.9 Installation electromagnetic environment: B type Model No.Main technique parameter Table 3Model No.Rated current ln (A)Rated operational voltage (V)Rated short-circuit breaking capacity RRated residual short circuit making and breaking capacity lm (A)Rated residual action current In(mA)Arc distance mmlcu (kA)lc (skA)RDM1L-125L10 16 2025 32 4050 63 80100400352225%lcu 30/100/300 No delay type100/300/500 delay type≤50RDM1L-125M5035RDM1L-125H8550RDM1L-250L100,125,160,180,200,225400352225%lcu100/300/500≤50RDM1L-250M5035RDM1L-250H8550RDM1L-400L225,250,315,350,400400502525%lcu100/300/500≤50RDM1L-400M6535RDM1L-400H10050RDM1L-800L400,500,630,700,800400502525%lcu300/500/1000≤50RDM1L-800M7035RDM1L-800H10050Shape and installation dimensionsCompany Profile FAQ1. What's your trading methods?It's according to your request.2.What's your Payment terms?We accept kinds of payment terms,e.g.TT,L/C,O/A.3.Would you accept to use our LOGO ?If you have good quantity,it absolutely no problem to do OEM. Any questions please feel free to contact us,we will reply you witin 8 hours. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
