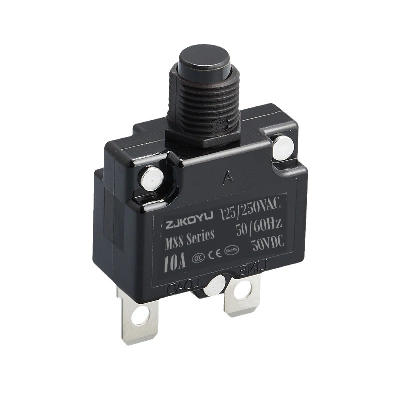

Zjkoyu M88 with Black Push Button Thermal Circuit Breaker 5A to 20A

Product DescriptionM98 series Thermal Circuit Brealer for equipmentsingle pole push to reset.- for inverter / variable frequency drive VFD- for UPS / online UPS / Uninterruptible Power Supply- for PDU / Power Distribution Unit- for home UPS- for power strip- for extension cord- for boat panel- for portable generator Detailed Photos Outline dimension drawingProduct ParametersGeneral informationRated voltage125/250VAC 50VDCRated current3A to 50ALimited short-circuit current1000AInsulation resistance500VDCDielectric strenth1500VAC/minReset time≤50sReply mothodManualMechanical /Environmental dataOperating temperature-10°C to 60°CTerminal quick plug terminal or solder terminal or lock screw terminalNutmultiple choice, see product appendix and figureTerminal temperature riserated current < 65°C (ambient temperature is 25°C)Contact life>500 cycle at rated current and 125VAC * 150%Table of Enviromental Correction FactorsOperating Factor-5°C(3A-4A) * 1.2, (5A-30A) *1.12+40°C(3A-4A) * 0.92, (5A-30A) * 0.94*Remarks:(1)The time / current characteristic curve depends on the ambient temperature prevailig.(2) In order to eleminate nuisance tripping, please multiply the breaker`s current rating by the derating factor show  below:Example:Normal Continouse Current = 10AAmbient Temperature = 40°CMultiplication Factor = 0.94Recommended Rating = 10A / 0.94 =10.6ASelect the Nearest Rating = 11ATime current characteristic curve (+25°C) 100% Rated Current: No tripping within 1 hour;135% Rated Current: Tripping within 1 hour;200% Rated Current: Tripping within 40 Seconds.300% Rated Current: Tripping within 10 Seconds.  CertificationsISOCCC CE Manufacture and test equipmentFAQOEM/ODM is available.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
