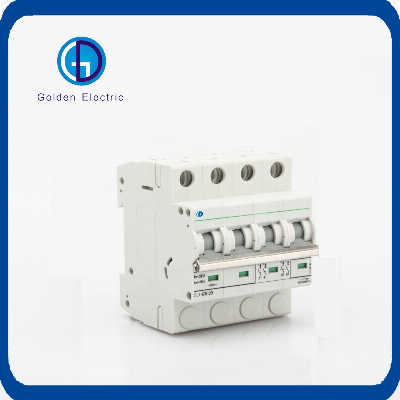

3 Pole DC750V DC Solar 32 AMP Circuit Breaker

DC1000V 4 Pole 6A-63A DC Circuit Breaker DC MCB for Solar Switch TUV SAA CE CertificateDC1200V 63A DC Circuit breaker for solar switch has passed IEC, TUV, CE certificateDC circuit breaker's ApplicationGL7-63 Series DC1200V 63A DC Circuit breaker, apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products.StandardProducts according IEC60947, GB14048.2, IEC60898.2 AS/NZS60898.1, AS/NZS60898.2, AS/NZ61009Standard.Technical DataIEC 898Standards1P/2P/3P / 4PPolesCMagnetic tripping characteristics6 10 16 20 25 32,40,50,63ARated current(A)6kARated short-circuit capacity(Icn):DC250V DC550V DC750V DC800V DC1000V DC1200VRated voltage6kVRated withstand voltage (Uimp):1000Rated insulation voltage(Ui):YesContact position indication3Energy limiting class:>2000Electrical Life:>1500Mechanical Life:Screw terminalConnection terminal:Pillar terminal with clamp 1~16mmConnection capacity:Symmetrical DIN rail 35mmInstallation:Panel mounting OF: Auxiliary contactAccessories:FB: Auxiliary alarm QY: under/over volage protector FL: Shunt releaseOverload CharacteristicTestTypeCurrentStart StateTrip / Not-tripTime LimitExpectedResultNoteac1.05 lnColdt ≥1hNot-trip bc1.30 lnFoollows test at
