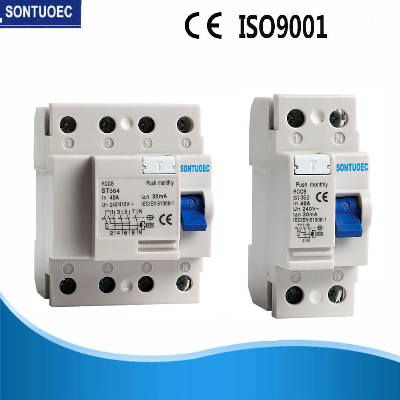

St360 Series RCCB Residual Current Circuit Breaker

Product DescriptionST360 residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.Product Over View:   1.Provide protection against earth fault/leakage current and function of isolation2.High short-circuit current withstand capacity3.Applicable to terminal and pin/fork type busbar connection4. Equipped with finger protected connection terminals5.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity6.Independent of power supply and line voltage, and free from external interference, voltage fluctuation.ModelElectronic type/magnetic type Residual Current characterstics A/ACPole No2P/4PRated  Current(A)16A,20A,25A,32A,40A,63ARated   Voltage(V) 240/415VRated residual operating current10ma,30ma,100ma,300ma,500maRated conditional residual short circuit current6KAElectro-machanical enduranceover 4000 cycles     SandardIEC/EN61008ElectricalfeaturesType(wave form of the earth leakage sensed) Electro-magnetic type, electronic typeRated current InAA,ACPolesP2,4Rated voltage UsVAC 240/415Rated sensitivity I△nA0.01,0.03,0.1,0.3,0.5Insulation voltage UiV500Rated residual making andbreaking capacity I△mA630Short-circuit current I△cA6000SCPD fuseA6000Rated frequencyHz50/60Pollution degree 2MechanicalfeaturesElectrical lifet4000Mechanical lifet10000Protection degree IP20Ambient temperature(with daily average ≤35ºC)ºC-25~+40Storage temperatureºC-25~+70InstallationTerminal connection type Cable/U-type busbar/pin-type busbarTerminal size top/bottom for cablemm225AWG18-3Terminal size top/bottom for busbarmm225AWG18-3Tightening torqueN*m2.5In-lbs22Mounting On DIN rail EN 60715(35mm)by means of fast clip deviceConnection From top and bottomOur Services: Competitive price Continuance Service and supportGood-after serviceQuality Reliability and Long Product Life. FAQQ 1. what's the payment term?   A. We accept TT,30% deposit and 70% balance agaisnt copy of BLQ 2. how's the delivery time ? A. usually it will take about 25 days for productionQ 3. tell me the standard of package?   A. Normally are cartons, but also we can pack it according to your requirement.Q 4.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.Q5. Can i take some samples?A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.Q6. Are you original Factory?A: Yes, we have our own factory .Q7. How can you make sure the quality of the products?A: We will accord to international quality standards to inspect every item before leaving our factory. Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
