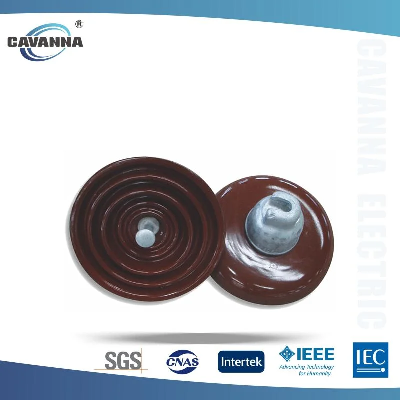

Product DescriptionSuspension insulators are designed to be connected in a string (usually two or more) to provide higher voltage protection than any single insulator. Suspension insulators are often used on high-voltage transmission towers, as shown in the figure below. Ceramic is by far the most commonly used insulation material, but there are also a variety of glass styles. Porcelain suspension insulators have revolutionized the power distribution industry, providing higher voltage protection - they are used on several 1,000kV DC transmission lines.Can be used for any voltage and pollution level by changing the number of insulatorsMechanical strength up to 530kNHigh reliability brought by technology accumulationExcellent long-term performance Product Parameters ANSI Class52-552-652-852-9A/B52-1052-1152-12Porcelain Disc Diameter, D (mm)254254280108280300300Unit Spacing, H (mm)146146146160165156178Creepage Distance (mm)292292305171305381381Combined M&E Strength (kN)11111116044160222222Impact Strength (N-m)77105101010Routine Proof Test Load (kN)55.555.5802280111111Time Load Test Value (kN)676710727107133133Low Frequency Flashover VoltageDry (kV)80808060808080Wet (kV)50505030505050Critical Impulse Flashover VoltagePos., (kV)125125125100125140140Neg., (kV)13013013090130140140Low Frequency Puncture Voltage (kV)11011011080110125125Radio Influence Voltage DataTest Voltage to Ground (kV)1010107.5101010Max. RIV at 1000kHz (uV)50505050505050Net Weight, Each, Approx., (kg)5.55.57.52.57.99.29.5 Related Products Warehouse Project Cases CertificationsFAQ Q: Could I have prices of your products?A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours. Q: Can I get a sample before the bulk order?A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. Q: Can we print our logo/ company name on products?A: Yes, of course, we accept OEM, then need you to provide brand authorization to us Q:Do you accept product customization?A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation Q: What is the lead time? A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment. Q: What is your Trade Terms? A: We accept EXW, FOB, CIF, FCA, etc. Q: What is your payment method? A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc Q: Do you inspect the finished products?A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment Q: How to solve the quality problems after sales? A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
