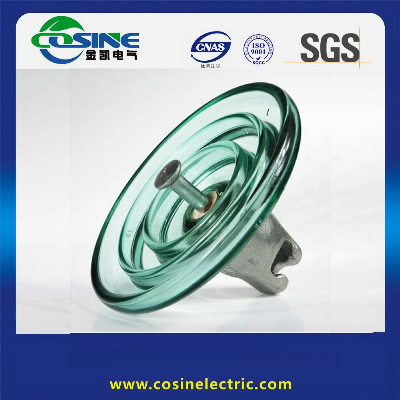

IEC383 Standard Sml 100kn Disc Glass Insulator with Wholesale Price

>>>Product Specifications:1. Name: IEC383 Standard Sml 100kn Disc Glass Insulator with Wholesale Price2. Standard: IEC standard approved3. Package: 6Pcs in one ply-wood case or by customer's requirements4. Technical Data of U100 Glass Insulators:IEC Standard insulatorsU100B/127U100B/146Specified mechanical  load(KN)100100Normal Spacing H(mm)127146Diameter of the insulator part (mm)255255Mininum normal creepage distance320320standard coupling IEC1201616power frequency withstand voltage 5PCS/1pcs150kV/40kV150kV/40kVlightning impulse withstand voltage 5PCS/1pcs420kV/100kV420kV/100kVpower frequency puncture voltage130kV130kVRadio influence voltage(10KV,1MHz)50μV50μVElectric iron visual test 18kV/22kV18kV/22kVimpulse puncture voltage2.8p.u2.8p.upower frequency electric arc voltage0.12s/20kA0.12s/20kANet weight per unit 4.0Kg4.0Kg5. Drawing as following (we could produce according to your drawings):6. Glass Shell Pics:>>>Workshop & Producing Line:>>>Quality Test & Control:Test Machines:>>>Company Profile:Welcome to Qingdao Cosine Electrical Equipment Co., Ltd, the one stop provider for insulators and line hardwares. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.  Products Range(1)10KV-500KV polymer insulator(2)40KN-420KN porcelain insulator(3)40KN-420KN toughened glass insulator(4)various kinds' pole line hardwareFitting Mainly Process(1)Drawing(2)Mould making(3)Smelting(4)casting(5)Annealing(6)Hot-DIP galvanized(7)Machining(8)InspectingProduce EquipmentFriction Screw Press Series,CNC Lathe,Machinning Center,CNC Milling Machine,Bentch Drilling,etcInspection EquipmentMetallurgical Analysis,Tensile Strength Tester,Hadress Tester,Altimeter,Micrometer,Chemical Component Analysis,etcSurface TreatmentHeat Treatment,Polishing,Shot Blasting,Painting,Electro-Plating,Chemical Plating,etcGalvanizationhot dip galvanizing or electro platingInsulatorPocerlain, composite, glass, silicon rubber, fibreglass- Stay insulators- Reel insulators- Pin type insulators- Shackle insulators- Toughened glass disc insulators- Suspension insulators- Strain insulators- Line post insulators- Station post insulators>>>Why Over 50 Country Clients Choose Us:1. Rich experience in ODM  and OEM.2. Excellent One-stop service.3. High Quality Precision Customized forging & Casting services.4. The lowest price.5. Strict quality control with ISO9001 Certificate.6. We can manufacture it according to customers requirements.7. Best after-sale services.Our ISO9001 Certificate with high quality:For more details of glass insulator, pls contact with Qingdao Cosine Electrical freely.We'll offer the most competitive price with good quality to you!  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
