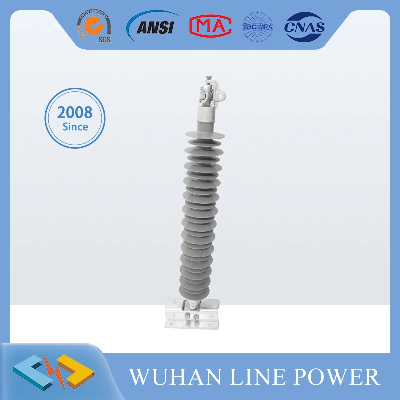

138kv 115kv Electrical Composite Line Post Insulator

Product DescriptionWuhan Line Power offer composite horizontal line post insulator for transmission line applications of various voltage classes up to and including 330kV. All of our insulators equip a one-piece, whole injection. This housing is formed onto the core by a compression molding process. Our design, manufacture, testing and quality control provide a unique products that is unparalleled.  Payment & Shipping Terms:Type:Horizontal Line PostMinimum Order Quantity:500 pcsPrice:NegotiablePackaging Details:plywood case, fumigated solid wood caseDelivery Time:45~50 days EX-worksStandard:IEC 61109, ANSI C29.1RAW MATERIALS:End FittingsCoreSheds and HousingHot dip galvanized cast iron or cast steelEpoxy & Glass fiber(ECR is available)HTV Silicone RubberMin. thickness of the galvanization: 86μmDiameter(mm): Φ38, Φ40, Φ55, Φ70, Φ90, Φ120Color: Grey, RedTECHNICAL DATA:Typical Line Voltage(kV)Section Length(mm)Dry Arcing Distance(mm)Leakage Distance(mm)Specified Cantilever Load(SCL, kN)Max. Design Cantilever Load(MDCL, kN)1min. Power Frequency Flashover Voltage(Dry/Wet)(kV)Impulse Flashover Voltage(kV)1381384±301155332014.67.3440/385410Product structure and advantagesOur company specializes in the production of composite insulators for transmission lines. The main structure is composed of rubber, epoxy glass fiber core and metal end fittings. Compared with similar ceramic and glass insulators, silicone rubber insulators have the following advantages:(1) Small size, light weight (1/7~1/10 times that of ceramic insulators with the same voltage), good elasticity of the shed, not easy to break, convenient transportation and installation, and economical.(2) High mechanical strength. FRP rods have high tensile strength, which is 5-10 times that of ceramic materials. The cross-section of the core material is small, the product is small in size, light in weight, and high in tensile strength. It is easy to manufacture large-tonnage insulators above 300KN.(3) High antifouling performance and good aging resistance. The silicone rubber injection molded shed has good hydrophobicity and mobility, which makes the insulator have high anti-pollution flashover voltage and good electrical corrosion resistance.(4) Easy installation and maintenance, which can greatly reduce maintenance costs caused by power outages and manual labor intensity.(5) The production process is simple and the delivery time is short.  Technology CharacteristicsWater-repellent, UV and corona resistant silicone rubber based housing.HTV injected weathersheds are chemically bonded to the rod which has an excellent performance.Metal fittings are fixed to the fiber glass core, not the silicone housing for maximum mechanical strength.Corona ring applied to the metal fittings to protect the housing. Housing is chemically bonded to the fiberglass core rod.Hydrolysis-resistant resin system applied to the fiberglass reinforced resin rod.3mm-thick high temperature vulcanized (HTV) silicone rubber sheath improves the system's mechanical characteristics while reducing FRP rod's electric field strength.Also protects the FRP rod during handling and installation. Metastable silicone sealing system prevents moisture ingress to the FRP rod.  ItemRequirementMeasured ValuedVisual examinationFuchsine,grey or white, no obvious mechanical admixture. Vulcanized sillion rubber with dense and smooth cutting surface.OkHardness (shore A)≮5065~70Tensile strength  (Map)≮44~6Failure elongation  (%)≮150≮180Tearing strength (kN/m)≮10 (right angle sample)12~15Volume resistivity (Ω.m)1X10123~8X1012Puncture strength (kV/mm)Alternating current ≮22≮30Tracking and erosionTMA4.5,erosion depth≯2.5mmTMA4.5, erosion depth
