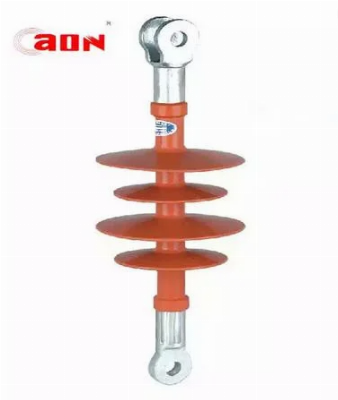

10kV composite polymer suspension electrical insulator

1.Size and technical data of High voltage 10kv suspension electrical insulatorTYPE:FXBW6-10/70CT Rated voltage  (KV)Rated mechanical bent failling load(KN)Structure height (mm)HMin.Electric arc distancehMin nominal creepage distance (mm)Full wave lightning impulse withstand voltage  (peak value)(kv)1min power frequency wet withstand voltage not less than(kv)1070380±1520048011545               2.Materials of High voltage 10kv suspension electrical insulator1).Silicon Rubber for sheds/housing.2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.3).Hot dip galvanized cast steel for metal fittings.4).5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).5).IEC / ANSI / GB standard. 3.Company advantage:(The world's only one insulators maker who can produce all material as blow by ourselves)1-We produce epoxy resin fiberglass rod.2-We produce HTV silicone rubber.3-We produce HDG metal fittings.4-Famous and top brand in China.5-Superior quality and competitive price.6-Almost 20 years experience with insulators, surge arresters and fuse cutouts.7-Exported to more than 35 countries.8-Guarantee: we can give 15 years wanrantee period after shipment.9-ISO9001 and ISO14001 and third party support and assurance from Envertec-Europe. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
