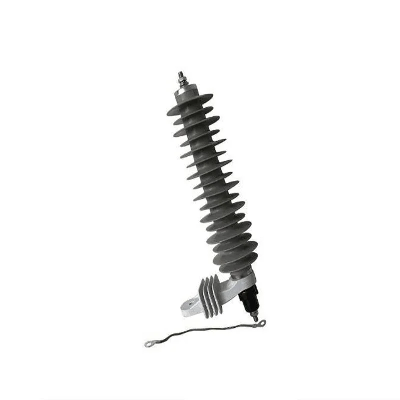

Product Introduction The zinc oxide lightning arrester is the most advanced over-voltage protector in the world. Due to make the resistor disc of core component mainly adopt zinc oxide arrester. Compared with the conventional silicon carbide arrester, this prescription of the product improves greatly the volt-ampere characteristics of the resistor disc and increase through- current capability at over-voltage so as to bring a rad local-changes for the characteristics of the arresters.2. Normal service conditions: 1. The ambient temperature: -40°C ~+40°C 2. The altitude above sea level : not exceed 1000-2000m 3. Earthquake intensity: not higher than 7 degrees; 4. Maximum wind velocity : less than 35m/s. 5. The filthy area should be given clear indication.3.Product Parameter (Specification)* Rated Voltage(Ur): 3kV - 36kV* Nominal Discharge Current(In): 5kA or 10kA* Long Duration Current Impulse: 150A or 250A* High Current Impulse(Imax): 65kA or 100kA* Pressure relief capability: 16kA or 20kA* Creepage distance: ≥25mm/kV, or ≥31mm/kVProducts Parameter (Specification) 10kA SeriesArrester typeRated voltage Ur (kV)Max. continues operating voltageResidual Voltage (kV)as per IECas per ANSI/IEEE1/10 μs Steep current impuse8/20μs Lightning current impulse30/60μs Switching current impulseUc (kV)MCOV (kV)YH10W-3/932.42.5511.398.9YH10W-6/1864.85.120.51816YH10W-9/2797.27.65312724YH10W-10.5/3010.58.49.336.331.527.6YH10W-11/33118.89.35383329YH10W-12/36129.610.241.53630.6YH10W-15/451512.012.7524538.3YH10W-18/541814.415.3625446YH10W-21/632116.81772.56353.5YH10W-24/722419.219.582.57261.2YH10W-27/812721.62293.28169YH10W-30/903024.024.41049080YH10W-33/993326.428.0113.89984.2YH10W-36/1083628.829.0124.210891.85kA SeriesArrester tYHpeRated voltage Ur (kV)Max. continues operating voltageResidual Voltage (kV)as per IECas per ANSI/IEEE1/10 μs Steep current impuse8/20μs Lightning current impulse30/60μs Switching current impulseUc (kV)MCOV (kV)YH5W-3/932.42.5511.398.9YH5W-6/1864.85.120.51816YH5W-9/2797.27.65312724YH5W-10/30108.09.334.13026.6YH5W-11/33118.89.35383329YH5W-12/36129.610.241.53630.6YH5W-15/451512.012.7524538.3YH5W-18/541814.415.3625446YH5W-21/632116.81772.56353.5YH5W-24/722419.219.582.57261.2YH5W-27/812721.62293.28169YH5W-30/903024.024.41049080YH5W-33/993326.428.0113.89984.2YH5W-36/1083628.829.0124.210891.84. Related product photos More ProductsRecommended Products/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
