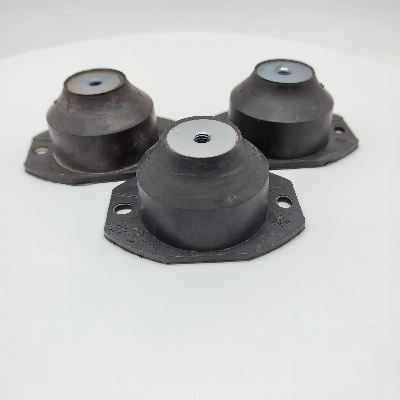

Product DescriptionAnti vibration isolation for static equipment :rotating machinery such as fans, air-conditioning, pumps, compressors, generator sets.pipework, ceilings, transformers, electrical enclosures.ADVANTAGES· Better than 90% isolation at 1.500 rpm (25 Hz).· Constant height over wide load range.· Stabilised characteristics during Service Life.· Simple to fit.· 500 hours protection against salt spray Product Parameters Designation Ref. Nominal LoadNL(daN) Shape Dimensions (mm)Φ ABCDEFGHΦIJNPaulstradyn 4 7 12533701533702533703471214040M6526,2646,244122,56Paulstradyn 20 30 5053370453370553370620305026040M6766,2908,264312,56Paulstradyn 70 100 1305337075337085337097010013028040M81008,212212,284482,512Paulstradyn 160 200 260533710533711533712160200260210040M1012410,215216,210468310Paulstradyn 325 400 500533713533714533715325400500215040M1218212,221420,21541164,510Paulstradyn 640 820 1050 135053371653371753371853371964082010501350220040M1624014,228024,22041595,520 Height,unload 40mm, under load 32mmTechnical CharacteristicsThe vibration attenuation and height characteristics under nominal loads are stabilised after one month under a load at 20°C. · Natural axial frequency : 7 Hz, with nominal load.· Natural radial frequency : 3 to 5.5 Hz.· Maximum displacement :- axial : 12 mm- radial : ± 10 mm Operating temperature : - 20 °C to + 70 °C.Good dynamic performance at high frequencyWithstand fatigue and shocks.Reduced creep.* Detailed Technical Characteristics can be sent on request. Ask us for detailsMounting Standard Mounting· Machine base or foot dimensions ≥ ΦM*· Supporting structure (floor) dimensions > base of mounting F*· Screw HM Φ K, a washer is required between the screw head and the PAULSTRADYN**· Screw Φ K, a washer is required between the screw head and the PAULSTRADYN*** to distribute the load and resis corrosion**nuts and screws grade 4.6 minium.Recommanded Torque Diameter K mm M6M8M10M12Torque N.m. 251220Note: Donot Paint the mounting after fitting. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
