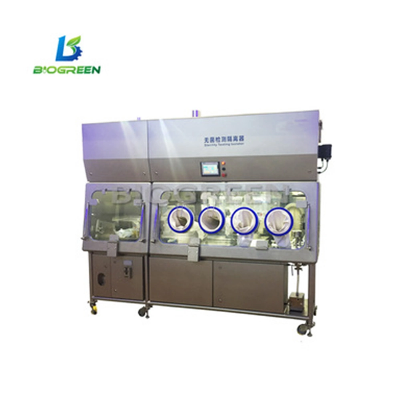

GMP Pharmarceutical Automatic Aseptic Filling Sterile Isolator

Product principleAs a sealed system, thesterility inspection isolator is designed to realize safe air exchange throughfan filter unit (high-efficiency particulate air(HEPA) filter) in a sealed environment, so as to continuouslycontrol the particles and microorganisms in the internal environment. When closed, the sterilityinspection isolator undergoesbiological decontamination treatment for its interior surface. The fasttransfer channel or airlock is utilized to carry out aseptic transfer of materials to ensure the protectionfromoperators todrugs.Maximum power≤3000WTouch screen size12.1" industrial control screenSupply voltage220V±22V, 50±1HzAirflow model in isolator cabinVertical unidirectional flowPressure control range of cabin-80 ~+80pa, to be adjustedGas sourceFiltered clean compressed air or nitrogen with a pressure of 0.4-0.6 MPaLeakage rate of the cabin Conduct the testing of pressure maintaining at a positive pressure of 80Pa. The overall leakage rate of the isolator cabin isless than 0.5%vol/ hourHumidity resolution0.1%Temperature resolution0.1 ºCWind speed0.36~0.54m/sElectronic signatureAvailableOnline leak detection in cabinAvailableOnline glove leak detectionAvailableData trackingAvailableDimensions313×125×217.5cm Can be customizedOperating space179×105×74cm Can be customizedAirlock space60×58×74cm Can be customizedProduct features1. It adopts a rigid-wall structure, madeof stainless steel and tempered glass, with dynamic A-levelinternal environment;2. The gloves,in thickened and anti-breakage type, or in thin and comfortable type,are used in theoperation.3. It selects H14 high-efficiency particulate air filter and conducts scanning leak detection via PAO.4. Hydrogen peroxide can kill 106 spores on the air and exposed surface in the isolator.5. The safe entry and exit of materials can be realized by various means, such as airlock and transfercabin equipped with RTP system.6. A built-in power supply is installed in the isolator, and compressed air connector provided with valveand cleaning waterconnector are equipped for the purpose of water and air intake.7. This system is equipped with Siemens programmablelogic controller (PLC) for fully automatic controlof pressure and air supply,and supports the alarm function for pressure loss.8. The NetSCAD system of 10" touch screen/ 12.1" industrial tablet PC conforms to the verificationrequirements of GMP for computer system in 2010.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
