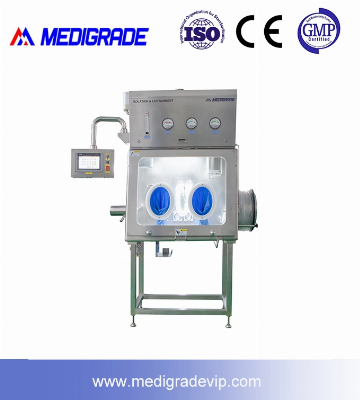

Standard Pharmaceutical Aseptic Isolator for Inspection/Feeding/API/Weighing

Weighing isolator Main descriptionThe use of weighing, proportioning and dispensing isolator.The purpose of this isolator is to ensure the operator's safety giving the maximum protection during all handling operations, ensuring the separation between the external glove box environment. The operator works while standing and is completely isolated from the substance being manipulated.Designed to provide containment(OEL to 0.5ugm/m3) for the purpose of potent products, this isolator is a double chamber unit, one for the drum loading and the other for the dispensing operators.  The isolator contains a weigh balance has a gull-wing door, glove ports and a wash in place system. The isolator operates at a negative pressure  with and in the case of a containment breach the system will alarm and provide air in rush protection.The design has been ergonomically tested to ensure that the intended operations can be easily performed and is fully GMP compliant.Main features1. Fully PLC controlled2. Software GAMP5 compliant3. Friendly operator interface4. Sliding tray5. Pass through door for communication with adjoining chamber6. 190mm glove flanges with gloves7. 270mm glove flanges with gloves8. Continuous film port diameter 380mm9. H+T sensor for temperature and humidity internal monitoring10. Magnetic manometers for the internal pressure control11. Inverter for ventilation fan speed control12. Automatic valves for air flow interception JUMO manometers13. JUMO manometers to monitor inlet and outlet filters obstruction14. Advance PUSH-PUSH system, bag in bag out system , RTP ,α/βvalve   Technical parametersItemAPI weighing sampling isolatorProduction capacity8hours*7daysMotor power4-0.8kwTotal power5-15kw/hPower supply380V±38V/50±1Hz/60HzDimension2800×855×2800MaterialSS316L/304Weight700kgNoise≤70db(A)OELOEB5Air speed0.36-0.54m/sLaminar flowVertical unidirectional flow/Turbulent flowTem/humidity online monitoringYesWorking pressure+45~-150PaCleanliness levelA class environmentStructure modeModular + Expansion portLeakage rate≤0.25%Vol/hIllumination≥500LuxInner cavity materialAISI316LOutside materialAISI304H2O2 sterilizing time≤90minSterilization effect6LOGSterilization methodHydrogen peroxide vaporSterilization concentration>300PPMStandard for residual VHP concentration after sterilization≤1PPMClassification during equipment operationA LEVELIf you are interested in this, please contact me: Nana Zhang Shanghai Medigrade Industry Co.,Ltd Waigaoqiao Free Trade Zone, Shanghai,China. 200137       medigrade.en.made-in-china.com /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
