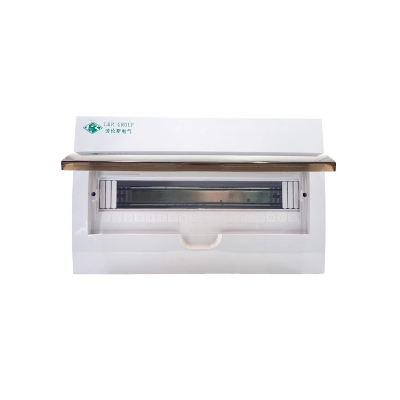

Tsm Circuit Breaker 18 Loops CB Panel Encloser Distribution Box

DescriptionMerlin Gerin TSM type MCB distribution box, Din rail is standard 35mm which is adjustable forflush mount distribution box.MaterialsMain: ABSNeutral links & earth links: highly copper material to prevent temperature rise. Din Rail: Aluminum/Steel for corrosive resistanceTechnical DataFlush Mounted/Concealed Plastic Electrical MCB Distribution BoxesModel No.Ways/LoopsL1 (mm)W1 (mm)H1 (mm)L (mm)W (mm)H (mm)LR-TSM-F04 4 ways1151976013622227LR-TSM-F06 6 ways1481976017022227LR-TSM-F08 8 ways1841976020722227LR-TSM-F10 10 ways2221976024322227LR-TSM-F12 12 ways2581976027922227LR-TSM-F15 15 ways3101976033422227LR-TSM-F18 18 ways3652196839825127LR-TSM-F24 24 ways2583106830034527LR-TSM-F36 36 ways2584496830048427Fitting Inside the EnclosureLoopsZero barEarth barWidthHeightDistribution box(pcs)(pcs)(mm)(mm)LR-TSM-F/S-43668LR-TSM-F/S-63668LR-TSM-F/S-84468LR-TSM-F/S-128468LR-TSM-F/S-189968LR-TSM-F/S-24Double 8Double 468LR-TSM-F/S-36Double 9Double 968  Standard  IEC60439-3  Mounting type  Flush and surface. For flush mount, adjustable DIN rail,         adjustable depth  Protection degree  IP40    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
