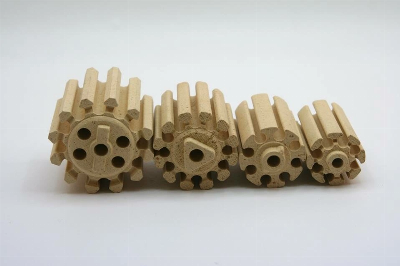

Ceramic Fitting Parts Insulators for Bobbin Heaters

The product profile  Model01Product introductionCordierite ceramicSizeDiameter: 22mm, 25mm, 28mm, 32mm, 35mm, 36mm, 38mm, 41mm, 45mm, 50mm, 53mm, 55mm, 65mm, 76mm, 80mmNo of Holes: 6, 8, 12MaterialCordierite ceramicApplicationTo heat liquid, water or oil and for transfer heatStandardNational StandardBrandsuperb heaterCountry of originshenzhen,ChinaMOQ100 pieceSupply ability3000 piece/dayDelivery deadline15 daysRaw materials Talc, clay, alumina, feldspar and so on Cordierite, the main component 3AL2O3, 2O2O2, strong acid resistance, good chemical stability, high insulation, strong adsorption, high temperature (1200-1300 degrees Celsius), is a good electronic insulation porcelain materials. Widely used in electric appliances (such as hot air guns, hair dryer) in the electronic products in the coil skeleton, heat conductive tube head, pipe sets, matrix and so on. Process:ceramicsCordierite ceramicCordierite (2MgO · 2Al2O3 · 5SiO2) as the main crystal phase of the ceramic: The compressive strength is 280 ~ 500MPa. Tensile strength of 25 ~ 40MPa. Bending strength of 50 ~ 60MPa. Impact strength 1.8 ~ 2.2cm · kg / cm2. Linear expansion coefficient (1.1 ~ 1.8) × 10-6 (20 ~ 100 ºC). The average thermal conductivity is 3.35 ~ 5.02kJ / (m2 · h · ºC) (0 ~ 100 ºC). Resistant to hot and cold temperature of 300 ~ 500 ºC. Insulation resistance 2.3 ~ 5.6MΩ · cm (400 ~ 600 ºC). Dielectric loss tangent 200 × 10-4 (50Hz); 40 × 10-4 (500Hz). The refractoriness is about 1400 ° C. Insulator for Water Geyser Heater:Insulator for Water Geyser Heater is used to allow the electric energy to water geyser heaters. Being a client based company we offer a high quality range of Insulator for Water Geyser Heater at competitive prices, as these are widely used in electrical applications. Our range is available in various specifications and extensively used for heat and power distribution in both commercial and industrial construction. These are durable enough for resisting high which proves useful and safe in applications. They are available in various specifications as per the clients requirement. For more information,please feel free to contact me.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
