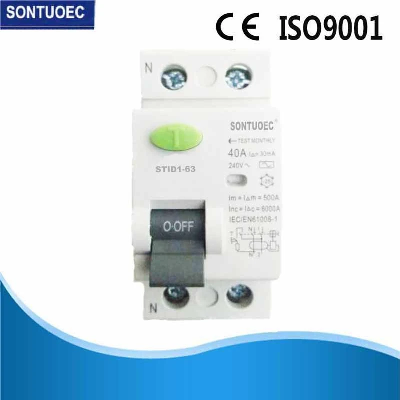

ID Series RCD RCCB 6ka Residual Current Circuit Breaker Competitive Price

Product DescriptionCredit Suppliers SONTUOEC ID Series RCD  RCCB 6KA Residual Current Circuit Breaker competitive priceGeneral Introduction  FunctionSTID1-63 series RCCB(without overcurrent protection)applies to AC 50Hz, rated voltage 240V 2 poles, 415V 4 poles, rated current up to 63A. When electric shock occurs to human or leakage current in grid exceeds stipulated values, RCCB cuts off the fault power in a very short time to protect the safety of human and electrical equipments. It can also function as non frequently switching of circuits.Main parameters StandardUnitIEC/EN61008ElectricalfeaturesMode Electro-magnetic type ,electronic typeType(wave form of the earth leakage sensed) A,ACRated current InA16,25,32,40,63PolesP2,4Rated voltage UeVAC 230/400Rated sensitivity I△nA0.01,0.03,0.1,0.3,0.5Insulation voltage UiV500Rated residual making andbreaking capacity I△mA630Short-circuit current I△cA6000SCPD fuseA Rated frequencyHz50/60 Pollution degree 2MechanicalfeaturesElectrical lifet4000MechanicaI Iifet8000Protection degree IP20Ambient temperature(with daily average≤35ºC)ºC-25~+40Storage temperatureºC-25~+70InstallationTerminal connection type Cable/ U-type busbar/pin-type busbarTerminal size top/bottom for cablemm225AWG18-3Terminal size top/bottom for busbarmm225AWG18-3Tightening torqueN*m2.5In-lbs.22Mounting On DIN rail EN 6071 5(35mm)by means of fast clip deviceConnection From top and bottomModel:  A  ; Ac ;Type: Electronic type; Magnetic type   Our Services: Competitive price Continuance Service and supportGood-after serviceQuality Reliability and Long Product Life.  WENZHOU  SANTUO ELECTRICAL CO,LTD.    is one of manufactories that specialize in manufacturing Circuit Breaker, AC CONTACTOR, Thermal Relay,Magnetic Starter, Solid State Relay, Voltage Regulator, Distribution Case  ,and is located in Liushi.Wenzhou.China FAQQ 1. what's the payment term?   A. We accept TT,30% deposit and 70% balance agaisnt copy of BLQ 2. how's the delivery time ? A. usually it will take about 25 days for productionQ 3. tell me the standard of package?   A. Normally are cartons, but also we can pack it according to your requirement.Q 4.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.Q5. Can i take some samples?A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.Q6. Are you original Factory?A: Yes, we have our own factory .Q7. How can you make sure the quality of the products?A: We will accord to international quality standards to inspect every item before leaving our factory.Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
