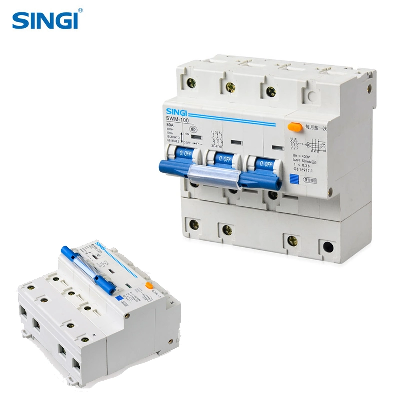

Air CB Approved Singi Earth Leakage ELCB Miniature Circuit Breaker Swmle-100

Product Description APPLICATIONSWMLE-100 residual current circuit breaker is applied in the power system of AC 50Hz, single phase 230V, three phases 400V, rated current 100A. The RCBO also can protect the circuit against current leakage, over load, short circuit etc. And extra protection function like over voltage can be added according to customers' request. It mainly used as building lighting and power distribution protection. STRUCTURESWMLE-100 earth leakage circuit breaker is composed of SWM-100high breaking mini circuitbreaker and current leakage release. The RCBO is current electronic current leakage circuit breaker, the main parts include zero sequence current transformer, electronic panel, current leakage release and the circuit breaker with protection functions of over load, short circuit. TECHNOICAL PARAMETERRated Voltage(V)Rated Current of Case Inm(A)PoleNeutral LineRated current In(A)Rated short circuit breaking capacityRated residual current breaking current(mA)Rated residual current no breaking current(mA)Trip TypeBreaking capacity Ics(A)COSφ2301001N63,80,100100000.530,50,100,200,30015,25,50,100,150C2301002 100000.54001003 100000.5230/4001003N100000.5230/4001004 100000.52301001N100000.5D2301002 100000.54001003 100000.5230/4001003N100000.5230/4001004 100000.5Remark:1) rated current leakage breaking current:30/50/100/200/300mA2) wiring is terminal with clamp, cable dia.:50mm2below available for hard cable TYPE MEANING  DIMENSION Company Information  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
