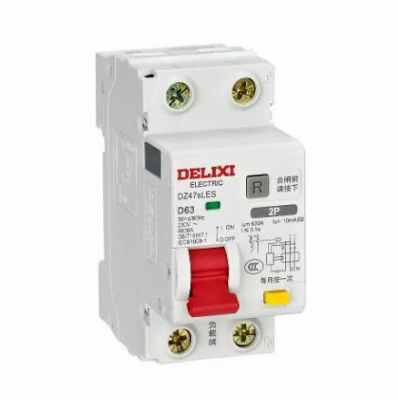

Delixi Dz47SLES 6A 63A 1p+N Miniature Earth Leakage Circuit Breaker

  The DZ47sLES compact leakage protection circuit breaker is a new series of products that integrates innovative technology and is carefully crafted. The product has a narrower width, more convenient wiring, more comprehensive protection, and more stable performance! It can be used in circuits with AC 50/60Hz, rated voltage 230V/400V, rated current up to 63A and below, and has protection functions such as leakage, overload, and short circuit.Rated working voltage (V) 1P+N, 2P: 230 AC3P, 3P+N, 4P : 400 ACRated current (A) 6-63Rated frequency (Hz)50Number of poles1P+N, 2P, 3P, 3P+N, 4PBreaking capacity (kA)6Rated residual operating current (mA) 30, 50, 75,100, 300Overvoltage protection function (V)(280 ± 14) VAC (only applicable to 1P+N, 2P, C-type productsCompliant with standardsGB/T16917.1 IEC61009-1 DZ47sLES miniature earth leakage circuit breaker Product nameBreaking capacity Number of polesTrip typeRated currentResidual currentOther function DZ47sLESN1C6  N: 6kA*1: 1P+N*2: 2P3: 3P6: 3P+N5: 4PA: A typeB: B typeC: C type*6: 6A*10: 10A*16: 16A*20: 20A*25: 25A*32: 32A*40: 40A*50: 50A*63: 63A*Default: 30mAR50: 50mAR75: 75mAR100: 100mAR300: 300mADefault: AC type leakage protection without overvoltage protectionA: A-type leakage protection without overvoltage protectionG: AC type leakage protection with overvoltage protectionNote: The product can be assembled with accessories: OF, SD, MSN, MV, MN, MVMN, FF, FS, MO (active), and MOWY (passive)        Frequently Asked Question (FAQ)1.How could I get a sample?   A:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.2.Sample time?   A:Existing items: Within 10 days.3. Whether you could make our brand on your products?   A:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.                          4. How to guarantee the quality of your products?   A:1) Strict detection during production.      2) Strict sampling inspection on products before shipment and intact product packaging ensured.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
