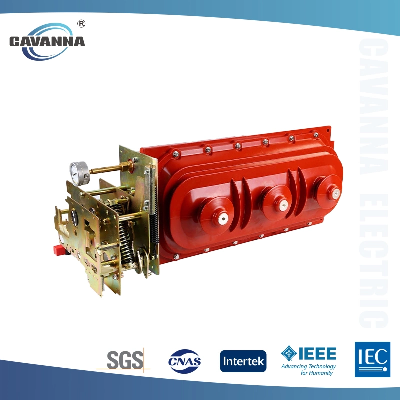

Ring Main Unit 24kv 630A Load Breaker Switch with Fuse

Product DescriptionFLN36-12 is the main switch in the ring main unit. It complies with technical requirements of IEC 420, 694 and 129, GB3804-2004 "High-voltage Alternating-current Switches for Rated Voltage above 3.6 KV and less than 40.5 KV", GB1985-2004 "High-voltage Alternating-current Disconnectors and Earthing Switches", GB/T11022-1999 "Common Specifications for High-voltage Switchgear and Controlgear Standards".FLN36-12 is a switch with closing, opening and grounding function. 0.05 MPa SF6 gas is filled into the epoxy shell with strengthening structure to realize these three functions with the least parts, which guarantees the quality and improve the reliability. It is maintenance-free and could run for 20 years safely in the normal condition.Product Parameters  No.ItemUnitData1Rated VoltagekV12/24/362Rated FrequencyHz503Rated CurrentA6304Rated Peak Withstand CurrentkA5054s Rated Short-time Withstand CurrentkA206Rated Making CurrentkA507Rated Breaking CurrentActive Load Breaking CurrentkA630Breaking Current LoopA630Cable Charging Breaking CurrentA1081min Power Frequency Withstand Voltage (Phase to Phase, to earth, fracture)kV42/489Lightning Impulse Withstand Voltage (Phase to Phase, to earth, fracture)kV75/8510Relative Pressure of SF6 gas (20ºC GP)Mpa≤0.0411Rated Operating Voltage (electric)VAC220/DC22012Rated Voltage of Shunt ReleaseVAC220/DC22013Average Opening Speedm/s3.5±1.514Average Closing Speedm/s3.5±1.515Three-phase points, Closing Phase of the samems≤316The main Circuit ResistanceμΩ≤12017Manual Maximum TorqueN.m≤16018Phase to Phase Center Distancemm210±0.5   Related Products WarehouseProject CasesCertificationsFAQQ: Could I have prices of your products?A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.Q: Can I get a sample before the bulk order?A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.Q: Can we print our logo/ company name on products?A: Yes, of course, we accept OEM, then need you to provide brand authorization to usQ:Do you accept product customization?A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluationQ: What is the lead time? A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment. Q: What is your Trade Terms? A: We accept EXW, FOB, CIF, FCA, etc. Q: What is your payment method?  A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc Q: Do you inspect the finished products?A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipmentQ: How to solve the quality problems after sales? A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
