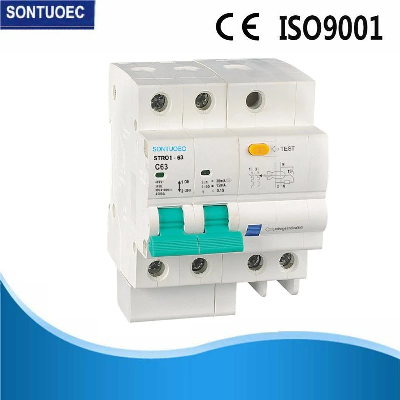

6ka Residual Current Circuit Breaker Over Current Protection RCBO

Product DescriptionRCBO RESIDUAL CURRENT CIRCUIT BREAKER WITH OVER CURRENT PROTECTION MCB + RCD ModelElectronic type/magnetic typeResidual Current charactersticsA/ACPole No2P Rated  Current(A)16A,25A,32A,40A,63ARated   Voltage(V)240/415VRated residual operating current10ma,30ma,100ma,300ma,500maRated conditional residual short circuit current 6KAElectro-machanical enduranceover 4000 cycles Technical DataPole No.: 1P+NRated voltage: AC 230/400VRated current (A): 1-40ATripping curve: B, C, DHigh short-circuit breaking capacity (Icn): 6kARated frequency: 50/60HzEnergy limiting class: 3Rated impulse withstand voltage: 6.2kVElectro-mechanical endurance: 4000Connection terminal: Pillar terminal with clampConnection capacity: Rigid conductor up to 25mm2Fastening torque: 2.0NmInstallation: On symmetrical DIN rail 35mmPanel mountingTerminal Connection Height: 21mmFAQ: Q: Are you trading company or manufacturer ?A: We are factory. Our teams have more than 20years experience in the field of Circuit Breaker...Q: How long is your delivery time?A: Usually, normal orders need 25days or so.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge,but,the express charge need be paid by the buyers.Q: What is your terms of payment ?A: Payment=5000USD, 30% T/T in advance ,balance before shippment.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
