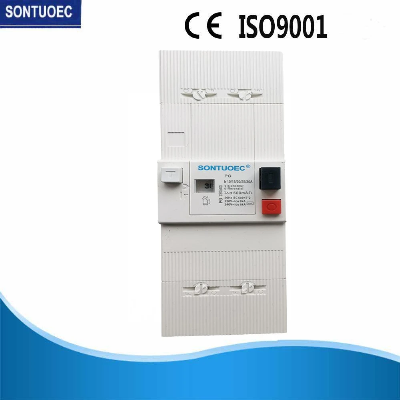

Supply RCBO Pg230 Series Africa Household Adjustable Differentiel Circuit Breaker

  Product DescriptionGENERALSTG (PG215/PG230/PG460)series adjustable residual current circuit  breaker is suitable for AC 50/60Hz,230/400V circuit,prevents from overloading,short-circuit etc.On the occasion of shock hazard or earth leakage,it will trip immediately.At the same time,the rated current of overload protection can be adjustable.Specification:  SandardIEC/EN61009; NFC61450; NFC62411ElectricalType(wave form of the earth leakage sensed) Electro-magnetic type, electronic typefeaturesRated current InA AC PolesP2,4 Rated voltage VAC 240/415 Rated Current  : 5,10,15A; 10,15,20,25,30A; 30,45,60A Rated sensitivity I△nmA 300, 500 Insulation voltage UiV500 Rated residual making andA630 breaking capacity I△m Short-circuit current I△cA6000 SCPD fuseA6000     Rated frequencyHz50/60 Pollution degree 2MechanicalElectrical lifet4000featuresMechanical lifet10000 Protection degree IP20 Ambient temperatureºC-25~+40 (with daily average ≤35ºC) Storage temperatureºC-25~+70InstallationTerminal connection type Cable/U-type busbar/pin-type busbarTerminal size top/bottom for cablemm225AWG18-3Terminal size top/bottom for busbarmm225AWG18-3Tightening torqueN*m2.5In-lbs22Mounting On DIN rail EN 60715(35mm)by means of fast clip deviceConnection From top and bottom TypeSTG215; STG230;STG260STG415; STG430;STG460Rated Current(A)5,10,15A; 10,15,20,25,30A,30,45A, 60A5,10,15A;10,15,20,25,30A,30,45A, 60APole Number2Pole4PoleLeakage acting current(mA)300mA,500mA300mA ,500mARange of break-off0.5~1.0X IΔn0.5~1.0X IΔnRated Voltage(V)230V-400VAC230V/400VACTripping time100ms100mSLife100000 times100000 timesAmbient Temperature-5°C ~ +55 °C-5°C ~ +55 °C StandardIEC60947.2; NFC61450; NFC62411 Our Services: Competitive price Continuance Service and supportGood-after serviceQuality Reliability and Long Product Life./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
