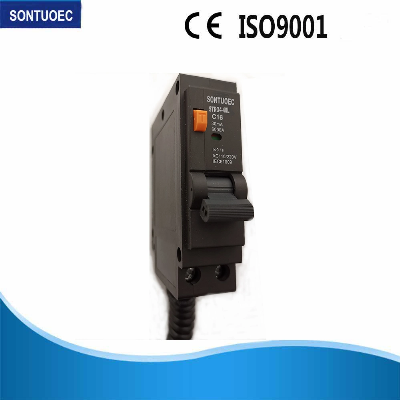

6ka 16A/30mA Overload Current Protection Earth Leakage Current Circuit Breaker

Product Description40A/30mA RCBO 1P+N 18mm width Plug in type 1P+N RCBO 6KA  with overload current protection  Residual Current Circuit Breaker with Overcurrent Protection AC or A model RCBO These series RCBO 1P+N in the line of AC 50HZ, rated voltage 230V and rated current up to 40A to automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to equipments.The circuit-breaker can also function as overload and shortcircuit protection and unfrequent changeover of line under normal condition.The product is conformity with GB16917.1,IEC61009-1 standards. Normal working & installment conditions:1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.2.Installment plance altitude: ≤2000m3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.4.Pollution degree: 2 class5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.7.Mounted Category: II,III class.8.Comply with Southern Market or Middle East Market.Technical data:Standard IEC61009  (Electronic type)Breaking Capacity4.5KA, 6KA Number of poles1P+N(1 module)Rated currents6,10,16, 20, 25, 32, 40ARated voltage110/220VACRated Tripping Current10mA,30mA, 100mA,300mAResidual current off time≤0.1sCharacteristicB ,CElectrical endurance10000Mechanical endurance20000Ambient temperature-25ºC~+45ºC Max. 95%humdityConnection terminalFexibe conductor 16mm²Rigid conductor 25mm²Type of terminalPlug-in  typeWidth18mm /module Packaging & Delivery & Warranty :Packaging DetailsCarton Volume: 0.70CBM; 100PCS/CTN G.W.:23KGS/CartonN.W.:21KGS/CartonOEM is acceptedPort : Ningbo & ShanghaiDelivery Time:Shipped in 25 days after payment;Warranty Time: 18months;FAQQ 1. what's the payment term?   A. We accept TT,30% deposit and 70% balance agaisnt copy of BLQ 2. how's the delivery time ? A. usually it will take about 25 days for productionQ 3. tell me the standard of package?   A. Normally are cartons, but also we can pack it according to your requirement.Q 4.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.Q5. Can i take some samples?A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.Q6. Are you original Factory?A: Yes, we have our own factory .Q7. How can you make sure the quality of the products?A: We will accord to international quality standards to inspect every item before leaving our factory.WENZHOU SANTUO ELECTRICAL CO,LTD.     is one of manufactories that specialize in manufacturing   Circuit Breaker,AC CONTACTOR,  Thermal Relay and  Magnetic Starter, Distribution Box, Voltage Regulator,Solid State Relay.... and is located in Liushi.Wenzhou.China  Contact  usThanks for your reading.If any product meets your need.Welcome to send us an email or by Wechat and WhatsApp.We are sure your any information can be attentioned without any delay. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
