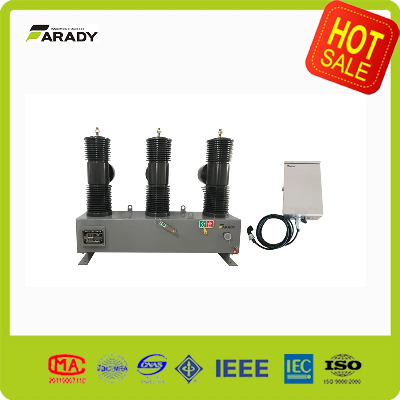

33kv Outdoor Vacuum Circuit Breaker Auto Recloser

GeneralFarady Powertech strives to bring our customers the latest technology and competitive pricing and best service for pole mounted Auto circuit recloserThe FAR series Auto circuit recloser can use on overhead distribution lines as well as distribution substation applications for all voltage classes 11kV up to 38kV at 50/60HZ power system. And its rated current can reach 1600A.The FAR series Auto circuit recloser integrates the functions of control, protection, measurement,communication,fault detection,on-line monitoring of closing or opening.comply to  IEC62271 and ANSI/IEEE C37.60 standardService environmenta) Air temperature: Maximum temperature: +85ºC; Minimum temperature:-45ºCb) Humidity: Monthly average humidity 95%; Daily average humidity 90% .c) Altitude above sea level: Maximum installation altitude: 2500m or more higher.d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.e) No frequent violent shakeTechnial DataNo.ItemUnitdata1Rated voltagekV1527382Rated currentA630125016003Rated frequencyHZ50/604Power frequency 1minDrykV506585Wet4555755Lightning impulse withstand voltage(peak value)alternate, opposite/fracturekV1101501706Rated short circuit breaking currentkA2016/2512.57Rated short current switching current(peak value)kA5040/6331.58Rated peak value withstand currentkA5040/6331.594S short time withstand currentkA2016/2512.510Rated operating circulate O-T1-CO-T2-CO-T3-CO-T4-CO11Breaking current frequency under rated short circuittimes3012Mechanism lifetimes1000013Secondary loop 1 min power frequency withstand voltagekV2Outline sizeCertificationPacking & DeliveryAbuot usZhejiang Farady Powertech Co.,Ltd TEL:0086-0577-61512688 Fax:0086-0577-61510628 Http:// faradypowertech.en.made-in-china.com   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
