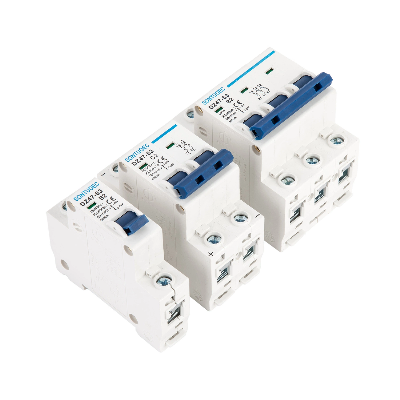

Bimetal Thermostat 6ka Sontuoec Stm14-63 63A Miniature Circuit Breaker

STM14-63 Series Mini Circuit BreakerProduct DescriptionApplication  :STM14-63  series are mounted in the illuminating distribution board and used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 240V (single pole)up to 415V (3 pole) 50Hz for protection of overload short circuit and for circuit change-over in lighting system; It complys with IEC60898.1 standards.SPECIFICATIONS: StandardUnitIEC/EN 60898-1 ElectricalfeaturesRated current InA1,2,4,6,10,16,20,25,32,40,50,63PolesP1,2,3,4Rated voltage UeVAC 230, 400Insulation voltage UiV500Rated frequencyHz50/60Rated breaking capacityA3000, 4500, 6000Rated impulse withstand voltage(1.2/50) UimpV4000Dielectric test voltage at ind. Freq. for 1minkV2Pollution degree 2Thermo-magnetic release characteristic B,C,DMechanicalfeaturesElectrical lifet4000Mechanical lifet10000Protection degree IP20Reference temperature for settingof thermaI elementºC30Ambient temperature(with daily average ≤35ºC)ºC-5~+40(Special application please refer totemperature compensation correction)Storage temperatureºC-25~+70InstallationTerminal connection type Cable/Pin-type busbarTerminal size top / bottom for cablemm225 AWG18-3Terminal size top / bottom for busbarmm225 AWG18-3Tightening torqueN*m2 ln-Ibs.18Mounting On DIN rail EN 60715(35mm)by means of fast clip deviceConnection From top and bottomNumber of Poles 1P, 2P, 3P ,4PRated current (A) 1,2,4,6,10,16, 20, 25,32, 40, 50, 63ARated Voltage (V) 110/220/380V Breaking Capacity (A) 6000 Electrical Life (Times) 6000Mechanical Life (Times) 10000Degree of protection  IP20FAQQ 1. what's the payment term?   A. We accept TT,30% deposit and 70% balance agaisnt copy of BLQ 2. how's the delivery time ? A. usually it will take about 25 days for productionQ 3. tell me the standard of package?   A. Normally are cartons, but also we can pack it according to your requirement.Q 4.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.Q5. Can i take some samples?A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.Q6. Are you original Factory?A: Yes, we have our own factory .Q7. How can you make sure the quality of the products?A: We will accord to international quality standards to inspect every item before leaving our factory./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
