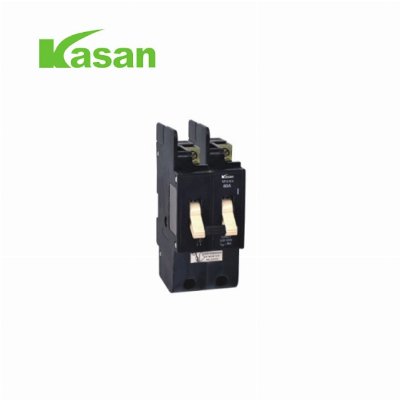

Sf1-G3 (1P) Hydraulic Magnetic Circuit Breaker

Hot seller SF1-G3 CBI Hydraulic magnetic circuit breaker MCB SF1-G3 Hydraulic magnetic mini circuit breaker is mainly suitable for overload and short circuit protection. It adopts hydraulic magnetic trip instead of bimetal. So it has a high sensitivity and the ambient temperature does also not affect it. It is especially used for illumination and distribution in industry and commerce. They are mainly used for overload and short circuit protection within the circuit of AC 50/60Hz, rated voltage of single pole or double poles up to 240V, three poles up to 415V. They can also be used for an unfrequented switchover of the circuit and illumination under normal conditions. They comply with IEC 157-1973 BC4752-1977 and BS 3871. 1.number of poles :1P, 2P,3P 2.Rated current(A):6,10,16,20,25,30,40,50,63,70,80,90,100 3.Breaking capacity(A):3000 4.Rated voltage(V)110/220(1P), 240/415(2P),415(3P) 5.Rated frequency:50/60HZ 6lectrical life:no less than 6000 operation 7Mechanical life:(O-C)no less than16000 operation Max. AC Voltage230/415  VACMax. Interrupting Capacity2.5 kA/3 kA  rmsMin. Current Rating0.5  AMax. Current Rating1P, 1P+N = 63A2P, 3P, 3P+N = 50AAgency recognition of Approvals:IEC 60947-2SANS VC8036SANS 156  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
