Geya Afci Afdd Arc Fault Circuit Breaker Protection Preventing Protection Fire Prevention

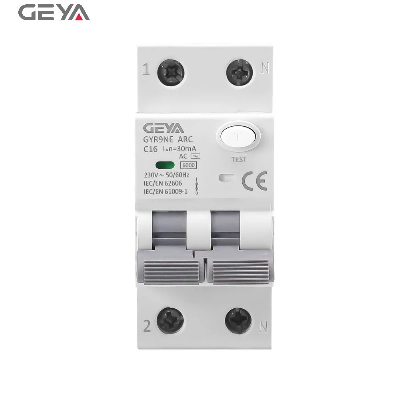

············This link price is only for GYR9NE 2P 25A/40A 30mA··········Product DescriptionFunction and application:    GYR9NE-ARC series arc fault circuit breakers are widely used in household and similar AC circuits with a rated current of 40A and below; The arc fault protection unit of GYR9NE-ARC series,can detect and identify the series arc fault, parallel arc fault and ground arc fault in circuits;For example: the aging, damage and humidity of the insulation layer of the line are prone to arc fault. When the GYR9NE-ARC series arc fault circuit breaker detects that there is an arc fault in the line, it will automatically trip and cut off the powerProduct ParametersTechnical ParametersCompliant withIEC/EN62606,IEC/EN61009-1,GB/T31143,GB16917.1Rated voltage Ue230V~Rated insulation voltage Ui400VRated impulse withstand voltage Uimp4kVRated current (A)6, 10, 16, 20, 25, 32, 40Pole number1P+NInstantaneous triptype CBreaking capacity6kARated residual current (mA)30, 100, 300Operating characteristics when the residual current has DC componenttype AC, type ACertificationsPackaging & ShippingCompany Profile/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
