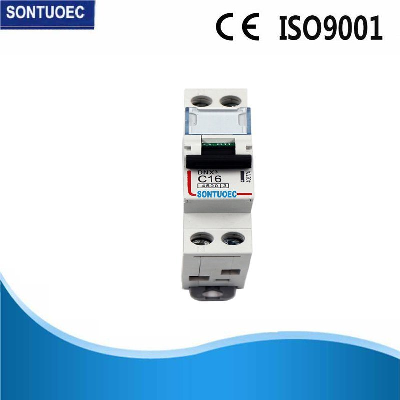

1p+N 18mm Width 16A Modular MCB Miniature Circuit Breaker

Product Description1P+N 18mm width  16A Modular MCB Miniature Circuit Breaker:DNX3 is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl the product is suitable for industry,business,building,ressidence,etc.It's conformity with CE GB10963,IEC60898 EN898 standards.Function and Feature:1.Protection against both overload and short circuit, the function of isolation2.High short circuit capacity3.Pin/fork type busbar terminal connecting4.18mm DIN rail mounting and screw mounting5. Full range accessories are available.Rated Current In  6A 10A 16A 20A 25A 32A;  40A 50A 63APoles1P 2P 3P 4P ;1P+N (230V) Rated Voltage Ue1P: 230/400V 2P/3P/4P: 400VRated Breaking Capacity6000A/10000AThermo-magnetic release characteristicB C DRated impulse withstand voltage(1.2/50) Uimp6KVDielectric test voltage at and ind. freq.for 1 min2KVPollution Degree2Protection DegreeIP20Electrical Life8000Mechanical Life10000Combination with AccessoriesAuxiliary, Alarm, Shunt Release, Under Voltage ReleaseCircumstance Temperature-5°C~+40°CCertificateCE  Guarantee18months     Standard IEC/EN 60898-1ElectricalfeaturesRated current InA 6,10,16,20,25,32; 40,50,63PolesP1,2,3,4 ;1P+NRated voltage UeVAC 240/415Insulation voltage UiV500Rated frequencyHz50/60Rated breaking capacityA6000, 10000ARated impulse withstand voltage(1.2/50)UimpV4000Dielectric test voltage at ind.Freq.for 1 minKv2Pollution degree 2Thermo-magnetic release characteristic B,C,DMechanicalfeaturesElectrical lifet4000Mechanical lifet10000Protection degree IP20Reference temperature for settingof thermal elementºC30Ambient temperature(with daily average ≤35ºC)ºC-5~+40(Special application please refer totemperature compensation correction)Storage temperatureºC-25~+70InstallationTerminal connection type Cable/Pin-type busbarTerminal size top/bottom for cablemm225AWG18-3Therminal size top/bottom for busbarmm225AWG18-3Tightening torqueN*m2In-lbs18Mounting on DIN rail EN 60715(35mm)by means of fast clip deviceConnection From top and bottom  Our Services: Competitive price Continuance Service and supportGood-after serviceQuality Reliability and Long Product Life.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
