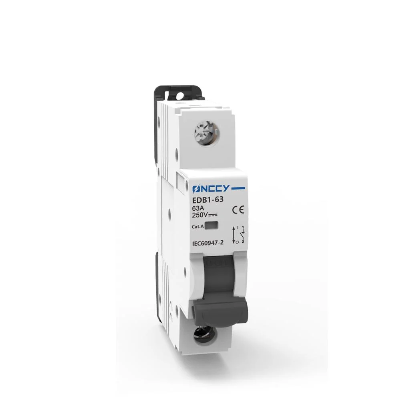

Indoor Outdoor MCB1000V 10A-63A MCB Mini Circuit Breaker

Indoor Outdoor Mcb1000V 10A-63A MCB Mini Circuit BreakerProduct ProfileEDB1-63 series Miniature Circuit Breaker have complete specifications and the max rated current can reach 63A. This series of products have clear blue and grey marks for ON-OFF and transparent cover for line marks. EDB1-63 can be used with other products for residential power distribution systems ≤63A.Technical DataPole1P2P3P4PRated Working VoltageNormal Voltage Ue250V DC500V DC750V DC1000V DCHigh Voltage         Ue300V DC600V DC900V DC1200V DCFrame Current63ARated Current                                                                             In10A,16A, 20A, 25A, 32A,40A, 50A, 63ARated Insulation Voltage                                                              Ui1200VRated Impulse Withstand Voltage                                            Uimp6kVTripping CharacteristicsB/CTripping TypeThermal MagneticRated Ultimate Short-Circuit Breaking Capacity                             Icu6/10kARated Service Short-Circuit Interrupting Capacity                           Ics6/7.5 kAElectrical LifeActual2000 CyclesStandard1500 CyclesMechanical LifeActual20000 CyclesStandard8500 CyclesOvervoltage CategoryIIIPollution Degree3Ingress ProtectionIP40; Wiring port IP20Resistance to humidity and heatClass 2Relative Humidity≤ 95 %Vibrationacc. to IEC60068-2-6Shocksacc. to IEC60068-2-27Terminal capacity2.5-25mm²Fastening Torque of Terminals2.5 N.mAmbient Temperature-30°C~70°CStorage Temperature-40°C~85°CInstallation MethodDINElevation≤2000mDimensionWidth:18mm/PoleHigh: 68mmDepth: 81mmWeight                                                                                             125.3g250.55g375.9g501.1g   FAQQ: Are you trading company or manufacturer ?A: We are manufacturer. We have 30,000 square meters of self-owned plant.Q: Do you have any certificates?A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications.Q: How do we make a quick response to customer , 5 inquiry ?A: Our professional team will reply you online or by email,Skype, whatsApp and so on.Q: Do you have any exporting experience?Which countries did you export to before?A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc.Q:Can you supply samples for checking ?A: Yes, we can supply samples, pls contact for detailed required.Q:How long is your delivery time?A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order.Q: What is the standard of package of your goods?A: Export standard package or special package according to customer requirement.Q:How about inspection?A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company?A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
