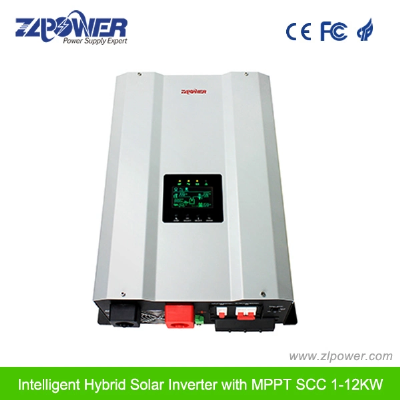

5kw Solar Hybrid Inverter Switching Power Supply 10kw Hybrid Solar Inverter

5kw solar hybrid inverter 10kw hybrid solar inverter Main Features1. 1-12KW Off Grid Pure Sine Wave Solar Inverter With AVR Function2. 3 times peak power(Surge Power)3. Optional DC/AC priority funtion4. Adjustable charge current by users5. Optional Battery type and capacity6. Wide AC input voltage 80-270vac7. GS 1-12KW Large LCD digital display shows Solar Generation and Inverter Capacity8. Optional Remote LCD display and switch panel9. Widely used for home applications like Air condition, refrigerators etc..  SpcificationMODEL(GS Series)HV/LV ModelHV Model(4-10KW)  LV Model(4-6KW)Line Mode Specifications:Input VoltageInput Voltage WaveformSinusoidal (utility or generator)Nominal Input VoltageLV 120VacHV 230VacLow Line DisconnectNormal:85Vac±4% Wide:80Vac±4%Normal:184Vac±4% Wide:135Vac±4%Low Line Re-connectNormal:95Vac±4% Wide:85Vac±4%Normal:194Vac±4% Wide:145Vac±4%High Line DisconnectNormal:136Vac±4% Wide:140Vac±4%Normal:263Vac±4% Wide:263Vac±4%High Line Re-connectNormal:131Vac±4% Wide:135Vac±4%Normal:253Vac±4% Wide:253Vac±4%Max AC Input Voltage150Vrms270VrmsInput FrequencyNominal Input Frequency50Hz/ 60Hz (Auto detection)Low Line Frequency Re-connect51+0.3Hz for 60Hz;41+0.3Hz for 50Hz;Low Line Frequency Disconnect50+0.3Hz for 60Hz;40+0.3Hz for 50Hz;High Line Frequency Re-connect64+0.3Hz for 60Hz;54+0.3Hz for 50Hz;High Line Frequency Disconnect65+0.3Hz for 60Hz;55+0.3Hz for 50Hz;main functionsOutput Voltage WaveformAs same as Input WaveformOver-Load Protection (SMPS load)Air switchOutput Short Circuit ProtectionAir switchMax Bypass Overload Current40A/50A/80ABattery Invert Mode Specifications:AC outputOutput Voltage WaveformSine waveRated Output Power (KW)LV:4KW/5KW/6KWHV: 4KW/5KW/6KW/7KW/8KW/10KWPower Factor0.9~1.0Nominal Output Voltage (V)LV:120Vac ±10%rmsHV:230Vac ±10%rmsNominal Output Frequency (Hz)60Hz ± 0.3Hz50Hz ± 0.3HzDC VoltageNominal DC Input Voltage24VDC/48VDCDC Voltage range20-31.0Vdc for 24VDC40-62.0Vdc for 48VDCLow Battery Alarm21.0Vdc ± 0.6Vdc for 24V battery42.0Vdc ± 1.2Vdc for 48V batteryLow DC input Shut-down20.0vdc± 0.6Vdc for 24V battery40.0Vdc ± 1.2Vdc for 48V batteryHigh DC input Alarm & Fault32Vdc ± 0.6Vdc for 24V battery64Vdc ± 1.2Vdc for 48V batteryHigh DC input Recovery31.0Vdc ± 0.6Vdc for 24V battery62.0Vdc ± 1.2Vdc for 48V batteryAC ChargerNominal Charge Current35A/50A/70A (5 stages adjustable charging current)Charge Current Regulation± 5AdcOver Charge ProtectionBat.V≥31.0VDC for 24V batteryBat.V≥62.0VDC for 48V batterybeeps 0.5s every 1s & fault after 60sAlgorithmThree stage:  Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage)Solar chargerRated Charge Current40A60ARated charge battery Voltage type24V/48V24VMax.PV open circuit array voltage24V for 55Vdc48V for 110VdcCharger modeMPPTPV Low Voltage Re-connectPV≥Bat.V=3VPV Low Voltage DisconnectPV98%Transfer TimeAc to Dc20ms (Max)Dc to Ac15ms (Max)System parameterOver-Load Protection110%
