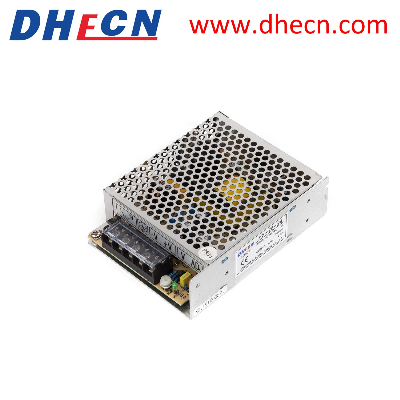

HSC-75 Single Output Switching Power Supply MODEL:HSC-75 Single Output Switching Power SupplyFeatures:·Little volume,high efficiency,long life and high reliability·Universal AC input/full range·Protections:Short circuit/Over load/Over voltage·Cooling By free air convection·LED indicator for power on·100% full load burn-in test·2 year warranty·Dimension: 99*82*36mm(L*W*H )casing No. : H002MODELHSC-75-3.3HSC-75-5HSC-75-12HSC-75-15HSC-75-24HSC-75-48OUTPUTDC Voltage3.3V5V12V15V24V48VLoad Stability±2%±1%±0.5%±0.5%±0.5%±0.5%Line Regulation±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%Voltage Tolerance±3%±2%±1%±1%±1%±1%Rated Current15A12A6A5A3.2A1.6ACurrent Range0-15A0-12A0-6A0-5A0-3.2A0-1.6ARated Power49.5W60W72W75W76.8W76.8WRipple & Noise80mVp-p80mVp-p120mVp-p120mVp-p120mVp-p120mVp-pDC Adjustment Range3.0-3.6V4.75-5.5V10.8-13.2V13.5-16.5V21.6-26.4V42-52.8VSetup, Rise, Hold Time500ms,30ms,60ms /230VAC 500ms,30ms,14ms /115VAC at full loadINPUTVoltage RangeAC 88~264VAC DC 125~373VDCAC Current1.2A/ 230 2A/115VEfficiency72%76%82%83%85%86%Inrush CurrentCold start 40A/230VACLeakage Current< 2mA/240VACPROTECTIONOver Load110%~160%Protection: Hiccup mode,recovers automatically after fault condition is removedOver voltage3.8-4.45V5.75-7.5V13.8-16.2V17.25-20.25V27.6-32.4V55.2-64.8VProtection: Hiccup mode, recovers automatically after fault condition is removedENVIRONMENTWorking Temp., Humidity-25ºC~+70ºC; 20%~90 %RH (Refer to output load derating curve)Storage Temp., Humidity-40ºC~+85ºC; 10%~95 %RHVibration10~500Hz,5G 10min./1cycle, period for 60min, each along X, Y, Z axesSAFETYWithstand VoltageI/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVACIsolation ResistanceI/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDCSTANDARDSafety StandardUL60950-1,TUV EN60950-1 ApprovedEMC StandardDesign refer to EN55022 CLASSOTHERSWeight0.41KgPacking45pcs/19Kg/1.22CUFTNOTE1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.FAQ - DHECN 1.Question: Are you a manufacturer or trading company ? Answer: We are a specical manufacturer with import & export license, which established in 1998, it is a professional manufacturer in designing, producing and selling isolation switch, switching power supply, current transformer, voltage transformer, and other electrical products.2. Question : Why choose us and trust us? Answer : Good product, good price, and good service.Company spirit: Practical innovation, sincerity to allCore values: Customers' praise is the only value we exist.Management concept: Pursuing excellent quality, creating first-rate services3. Question : Where is your factory located ? How can I visit there ? Answer: With an ISO90001 certified factory located in Yueqing city, Zhejiang Province, P.R.OF China. It takes about 4 hours from SHANGHAI by high-speed rail and 45 minute by air. It is very pleasure for all to visit us. 4. Question : Can you do OEM ? Answer: Yes, we have the ability to do OEM /ODM to meet your requirements. 5. Question : What is the payment terms?Answer: In general T/T, L/C, Paypal or others we can discuss. 6. Question :How about the delivery time? Answer: Usually, if have enough in warehouse, the delivery time is within 3 working days. If need produce, the lead time is about 10-20 working days according to quantity of the order. 7. Question : How about the shipping method? Answer: For sample or small order, deliver by International express, such as DHL, FEDEX, TNT, UPS, EMS and so on.For large order, deliver by sea or by air according to buyers shipping instructions. How to contact uSend your Inquiry Details in the Below, please Click "Send" Now! Good price and sample are waiting for you./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
